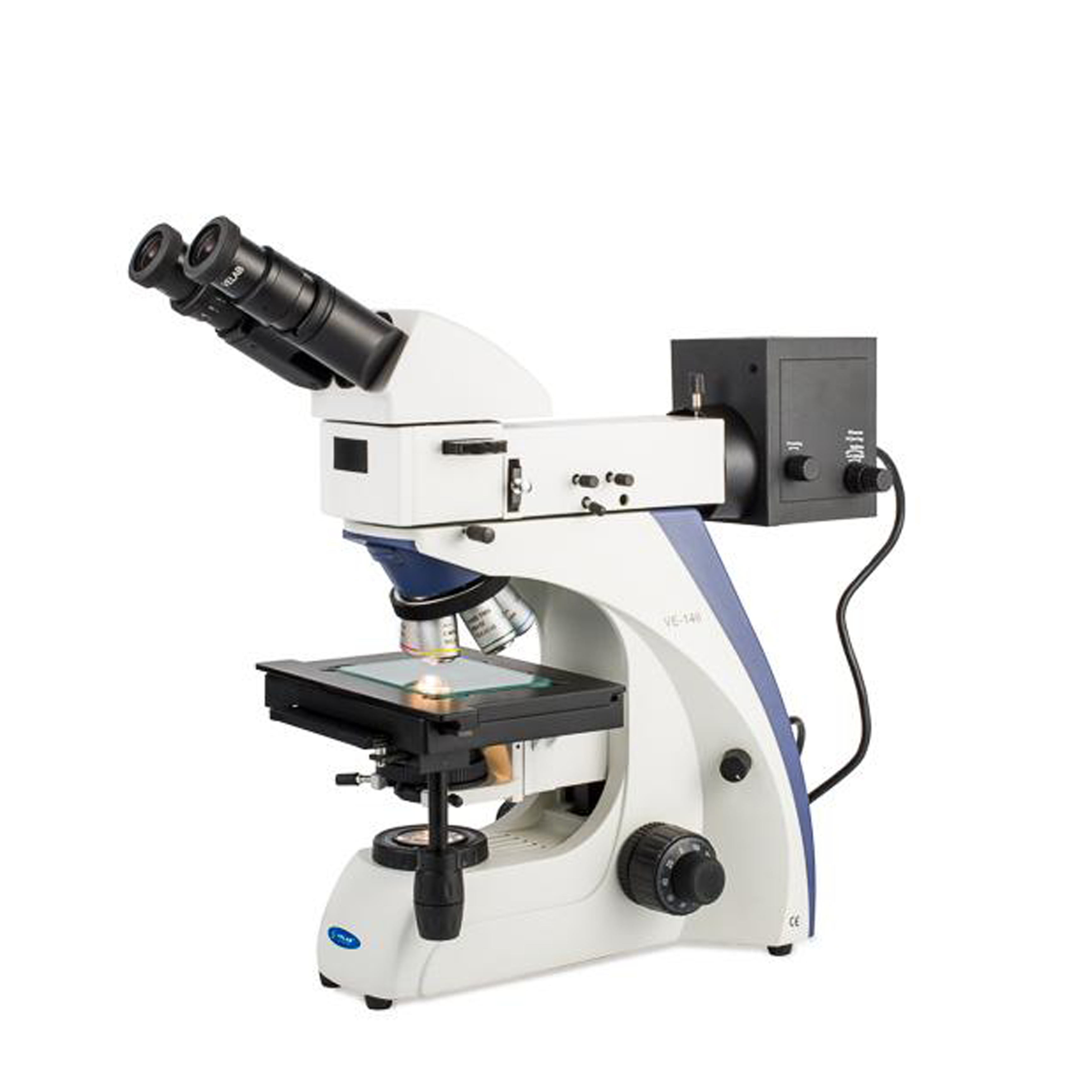

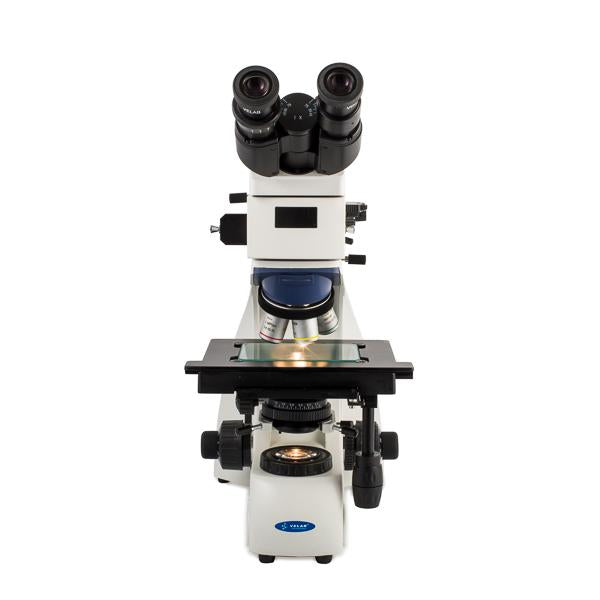

The VE-146 metallographic microscope is ideal for materials science, it includes transmitted and incident light with polarization.
Ideal for observing metals, crystals, powders and translucent materials.
TECHNICAL DATA
| EYEPIECES: WF 10x/22mm |
| NOSEPIECE: Quintuple |
| OBJECTIVES: 5X, 10X, 20X, 50X, long woring distance, Metallographic use |
| OPTICAL SYSTEM: Infinity-corrected plan achromatic |
| STAGE: Double layer with coaxial movement X-Y, 190 x 150 mm / 7.4" x 5.9" |
| CONDENSER: Abbe, A.N. 1.25 with elevator |
| DIAPHRAGM: Iris type |
| FOCUS: Coarse and fine anti-slip control knob |
| ILUMINATION: Kohler halogen 12V/30W y Epi-kohler fluorescence 12V/30W |
| POWER SUPPLY: 110/240V, 50/60 Hz AC adapter. |
| DIMENSIONS: 220 x 488 x 560 mm / 8.6″ x 19.2″ x 22″ |
MAIN FEATURES
- Diopter adjustment in one eyepiece.
- Binocular head type Siedentopf.
- Objectives with color rings.
- Stage with integrated clear glass surface.
- Stable, robust, reinforced and easy to transport.
- Incident and transmitted illumination, with diaphragm field in both.
- Head tilted 30 ° and rotatable 360 °
- Interpupillary distance of 48 ~ 75 mm.
APPLICATIONS
- Education: Lower grade level
- Metallography, mineralogy and science materials
- Industrial
ACCESSORIES INCLUDED
- Power cord.
- Dust cover.
- Filter lBD-2, IF550 and ND25
- Blue, green and yellow filters.
- Stage micrometer.
- Micrometer eyepiece, DIV:0.1 mm.
WARRANTY
10-years limited warranty
