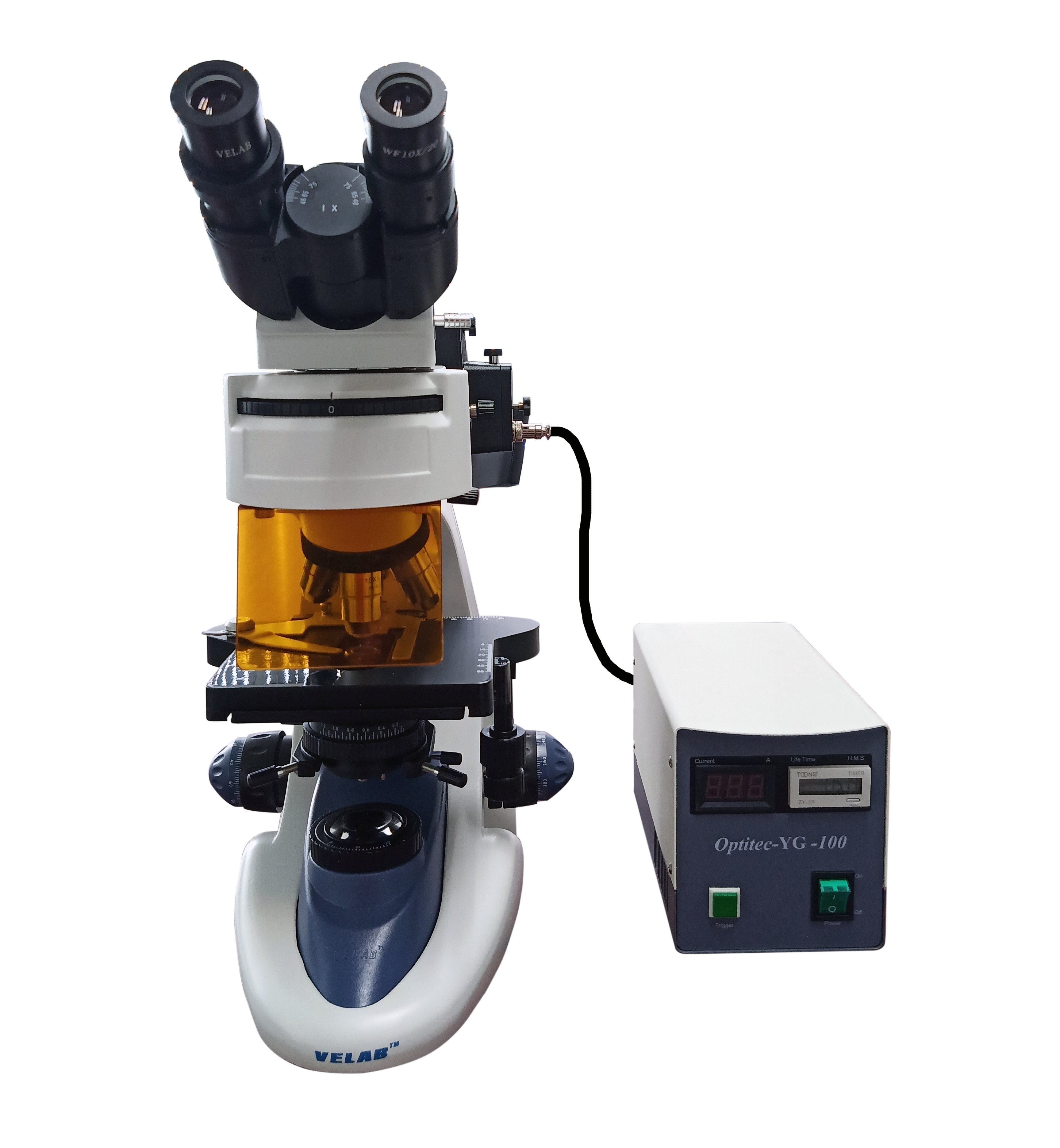

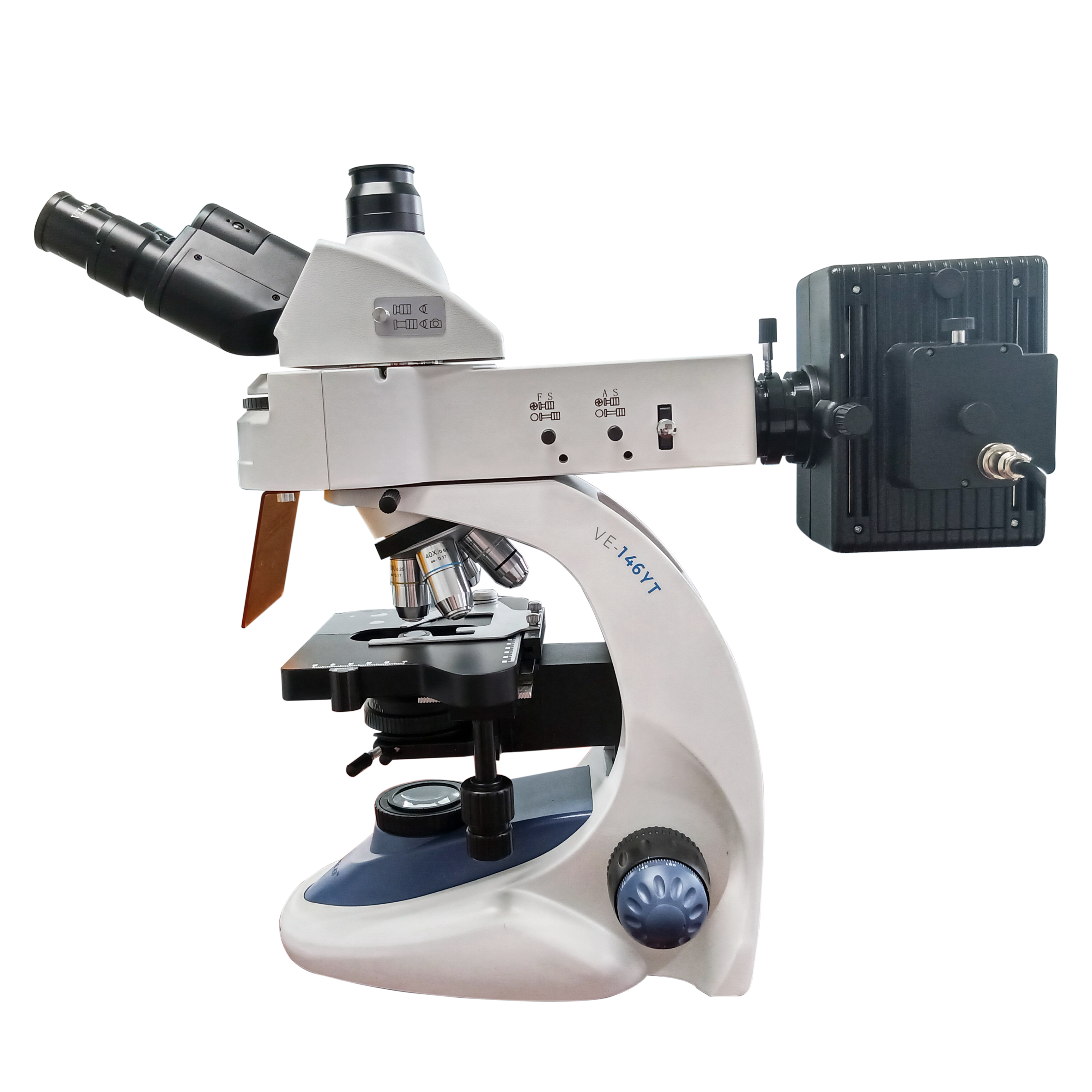

VE-146YT Trinocular Fluorescence Microscope

VE-146YT Trinocular Fluorescence Microscope

SKU: VE-146YT

$2,754.00

Trinocular fluorescence microscope with yellow-green observation effects on B-band with applicable ranges for FITC, acridine orange and auramine O. G-band red color with applicable ranges for TRITC, rhodamine B200 and propidium iodide. The VE-146 is used in the diagnosis of diseases, biochemistry, neurology, molecular biology, genetics, microbiology and research.

TECHNICAL DATA

Eyepiece: WF 10x/22mm

Nosepiece: Quadruple

Objectives: 4X, 10X, 40X (s), 100X (oil) (s)

Optical system: Infinity-corrected achromatic

Stage: Double layer with coaxial movement X-Y 152 x 132 mm / 5.9" x 5.1"

Condenser: Abbe, A.N. 1.25 elevator

Diaphragm: Iris type with filter holder.

Focus: Coarse and fine anti-slip control knob

Iluminaction: Kohler halogen 12V/30W and epi- fluorescence by mercury-vapor lamp 100W

Power supply: 110/240V, 50/60 Hz AC adapter

Dimensions: 180 x 485 x 540 mm / 7" x 19" x 21"

Main features

Diopter adjustment in one eyepiece.
Objectives with colored rings.
Trinocular head Siendentopf type.
Objectives with color rings.
Head inclined at 30 ° and rotatable 360 °
Stage with vernier, millimeter scale, caliper and stop with height adjustment.
Mercury Vapor Fluorescence Epi-Kohler Illumination.
Stative, robust, reinforced and easy to transport.
Illumination with field diaphragm in the lamp.
Interpupillary distance of 48 ~ 75 mm.
Head adapted to fluorescent illuminator and filter box with bands B, G and position for bright field observation.
Fluorescence filters: B: 450 - 490 nm, G: 510 - 560 nm.
Phototube with 23 mm diameter, compatible with VELAB series MC, LX cameras and VE-SCOPEPAD model tablet
