The VE-403 is a professional inverted microscope, ideal for the observation of samples in large containers such as culture bottles, petri dishes or microplates. It includes accessories for phase contrast applications and different stage adapters for a wide range of sample containers. Excellent for observation of cell cultures without prior preparation, monitoring of activity and growth, as well as production and quality control of biological products (vaccines, drugs, serums, antisera and reagents).
TECHNICAL DATA
| Eyepieces: WF 10x/20 mm |
| Nosepiece: Quadruple inverted |

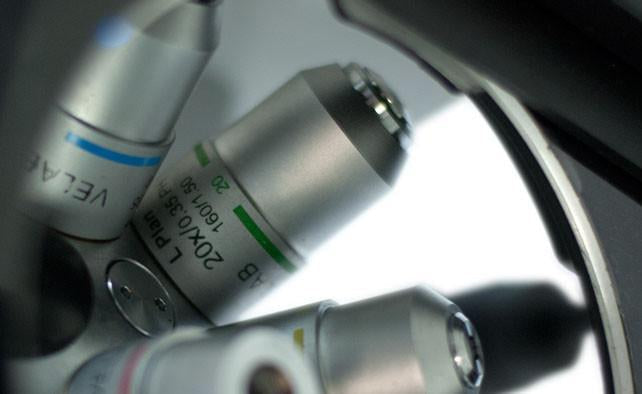

| Objectives: 4X, 10XPH, L20XPH, L40XPH, (S) long distance working |
| Optical System: Plan Achromatic |
|
Stage: Includes fixed stages, glass stages as well as moving stage. Coaxial movements X-Y, 242 x 172 mm. |
|
Condenser: Abbe, N.A. 0.3, working distance 7 mm. |
| Diaphragm: Iris type with filter holder |
| Focus: Coarse and fine anti-slip control knob |
| Illumination: Epi-Halogen 12V/30W. |
|
Dimensions: 320 x 490 x 520 mm / 12.5” x 19.2” x 20.4” |
| Power supply: 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Diopter adjustment in an eyepiece.
- Protective rubbers on eyepieces.
- Siedentop type Binocular Head.
- Objectives with colored rings.
- Adapters for different petri dishes.
- Stage with clamps.
- Lighting with intensity adjustment.
- Head inclined at 45 °.
- Cristal, metal and mechanical stage.
- Phase contrast on 10x and 20x objectives.
APPLICATIONS
- Education
- Research
- Industrial
ACCESSORIES INCLUDED
- Metal circular stage.
- 10x / 20x phase contrast sliders.
- Support for 35mm diameter Petri dishes.
- Support for Terasaki plates.

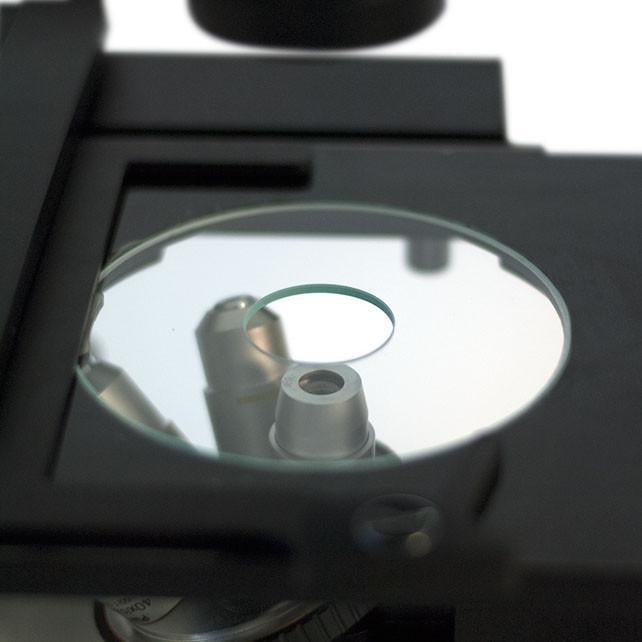

- Circular glass plate.
- Centering telescope.
- Support for petri dishes, 54 mm diameter.
- Mechanical stage with X-Y movement.
WARRANTY
10 years limited warranty
