The VE-407 is an Inverted metallurgical microscope, ideal for use in quality control and production in industrial procedures. It can be used for the observation and measurement of metal surfaces, crystals, circuits, powders and non-translucent materials.
TECHNICAL DATA
| EYEPIECES: WF 10x / 18 mm |
| NOSEPIECE: Quadruple inverted |

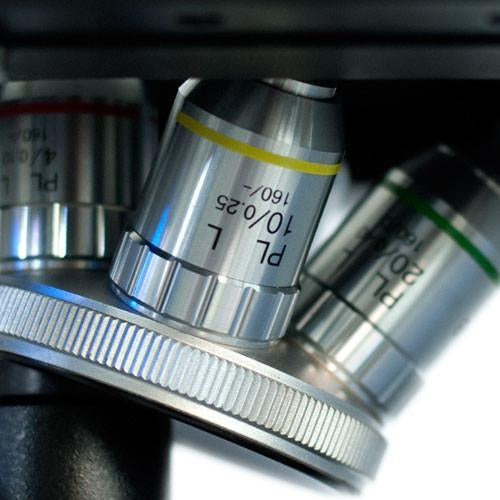

| OBJECTIVES: 4X, 10X, 20X and 40X long working distance. Metallurgical use. |
| Optical system: Plan achromatic |
| STAGE: Double layer with coaxial movement X-Y, 172 x 142 mm / 9.5" x 6.7" and central plate of 110 mm / 4.3" diameter |
| CONDENSER: Abbe, A.N. 0.3 |
| DIAPHRAGM: Iris type |
| FOCUS: Coarse and fine anti-slip control knob |
| ILUMINATION: Halogen 12V/30W |
| DIMENSIONS: 200 X 355 X 310 MM / 7.8" X 13.9" X 12.2" |
| POWER SUPPLY: 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Diopter adjustment in an eyepiece.
- Siedentopf type Binocular Head.
- Objectives with colored rings.
- Stage with clamps.
- Lighting with intensity adjustment.
- Head inclined at 45 °.
- Polarization and Analyzer Filter.
- Phototube with 23 mm diameter, compatible with VELAB series MC, LX cameras and VE-SCOPEPAD model tablet.
APPLICATIONS
- Education
- Industrial
- Metallography, mineralogy and science materials
ACCESSORIES INCLUDED
- Dust cover

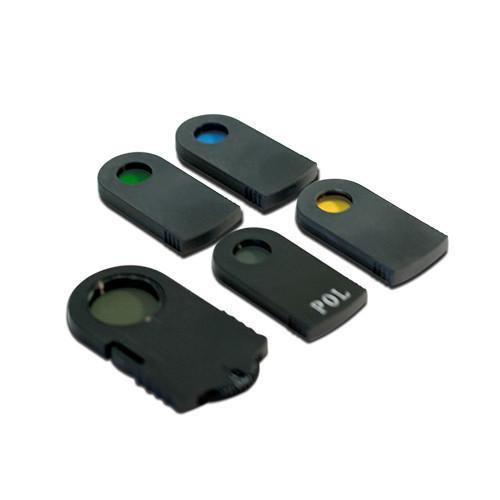

- Green, yello y polarizing green filter
- Power cord
- Analyzer and polarizer for polarising light

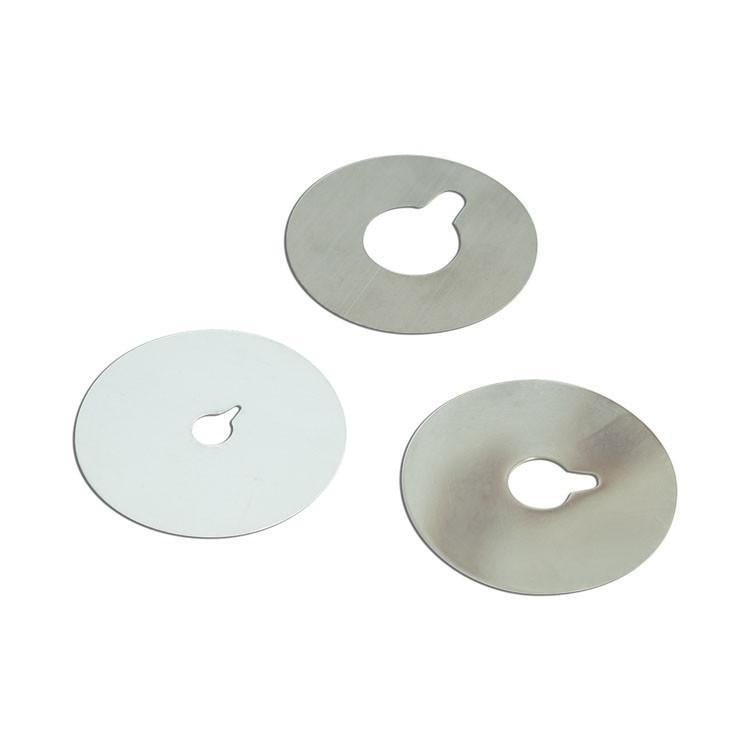

- Metal stage
- Eyepiece micrometer WF 10X/18 mm
- Stage micrometer DIV 0.01 mm
WARRANTY
10-years limited warranty
