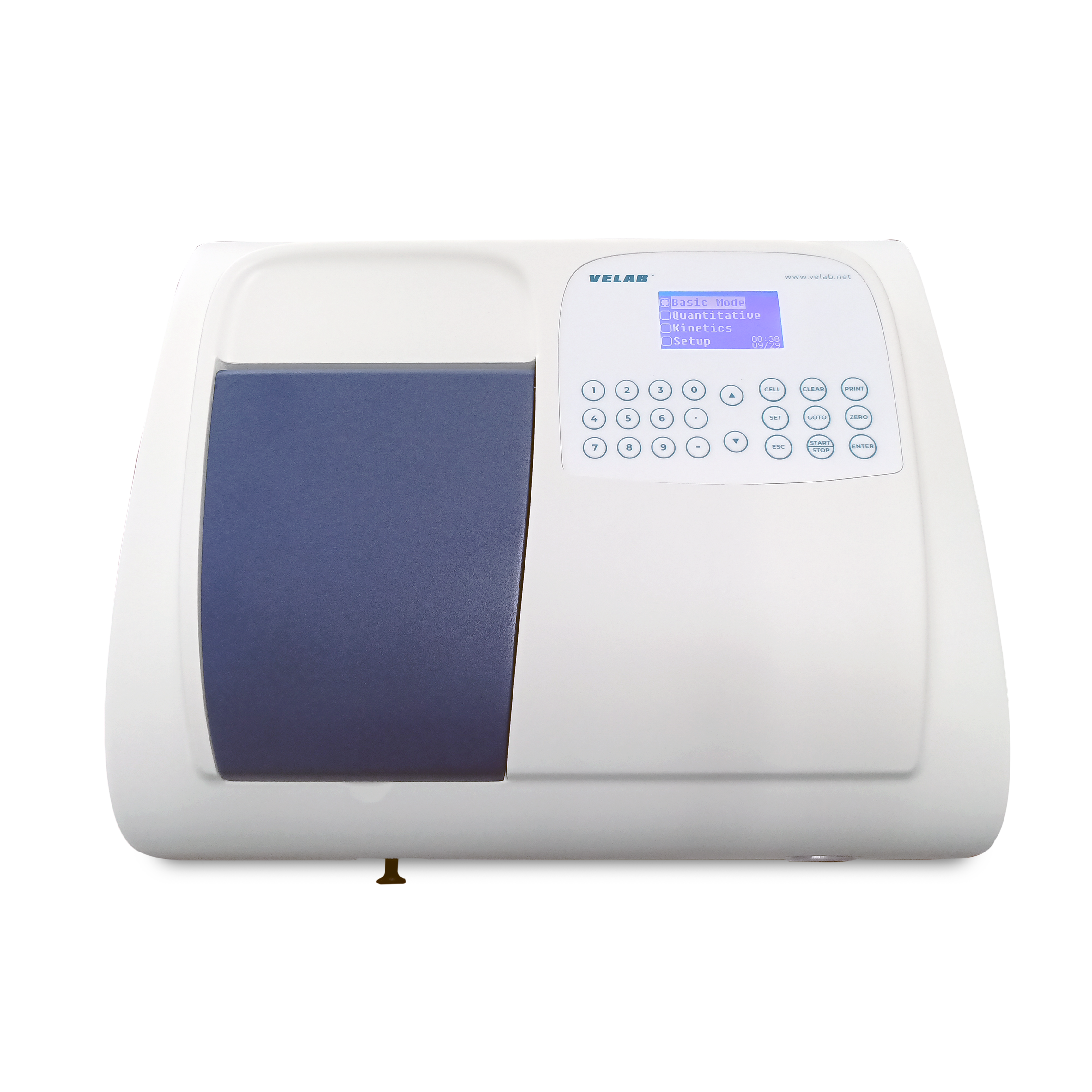

VE-5600UV PC UV-VIS Spectrophotometer

SKU: VE-5600UV-PC

$5,030.00

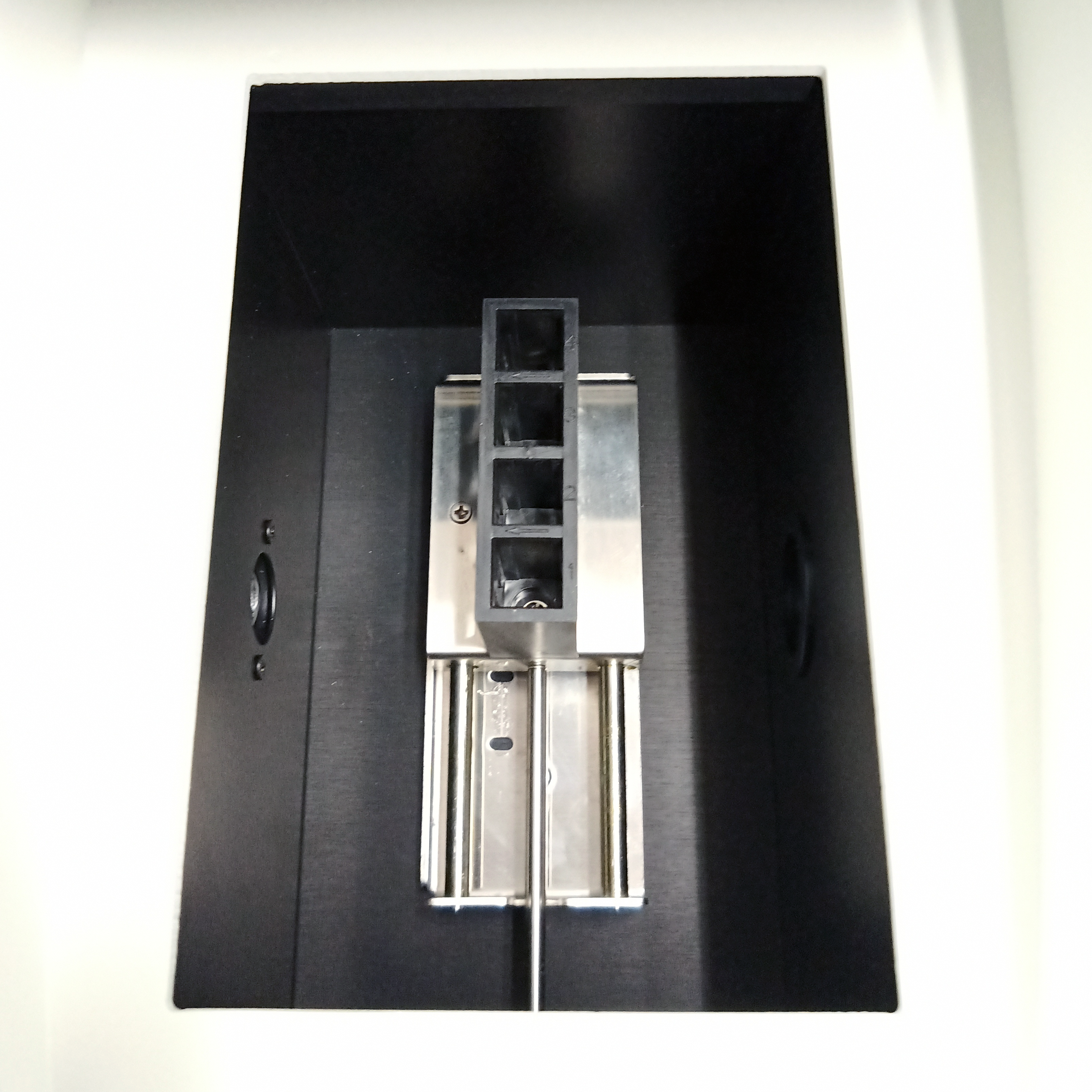

It is equipped with a Windows platform program that allows you to collect and analyze data in Excel model. Its LED display is easy to read from any angle to reduce visual fatigue after several hours of work. In addition, Halogen-Tungsten and Deuterium lamps can be switched on and off independently to extend their life. It has a large sample compartment and accepts several adapters for different tubes and cells.

TECHNICAL DATA

Wavelength range: 190 - 1100 nm.

Bandwidth: 2 nm.

Wavelength accuracy: ± 0.8 nm.

Wavelength repeatability: 0.3 nm.

Calibration: Automatic

Optical system: Simple, 1200 lines per mm grid.

Photometric precision: ± 0.3% T.

Photometric repeatability: ± 0.2% T.

Stability: 0.002 A / h at 500nm.

Diffused light: ≤ 0.05% T at 220nm and 360 nm.

Data interfaces: USB A / B, RS-232 port for printer

Screen: LCD

Light source: Halogen/Tungsten (Visible) and Deuterium (ultraviolet) Lamp

Detector: Silicon photodiode.

Power Supply: 110/220v, 50/60 Hz, 3.15 A, AC Adapter

Dimensions: 460 x 380 x 230 mm/18.1" x 14.9" x 9.0"

System software: Meta Spec Pro version 2.2: Core i3 or higher processor, reader CD, USB 2.0 interface, RAM memory greater than 2.0 GB, Windows XP, 7, 8 and 10. Includes access key and installation CD.

Management and operation of the spectrophotometer, concentration curves, kinetic analysis, purity analysis, nucleic acid concentration, proteins.

FEATURES

It is an analytical instrument with high precision and photometric stability.
It has a menu of settings and self-evaluation.
Storage of all your data on computer equipment.

FUNCTIONS

Measurement of absorbance
Transmittance measurement
Quantitative analysis using concentration curves
Dynamic measurements for a definite time

Software

Handling and operation of the spectrophotometer, concentration curves, kinetic analysis, wavelength scanning and 3D spectrograms; analysis of purity, concentration of nucleic acids, proteins
