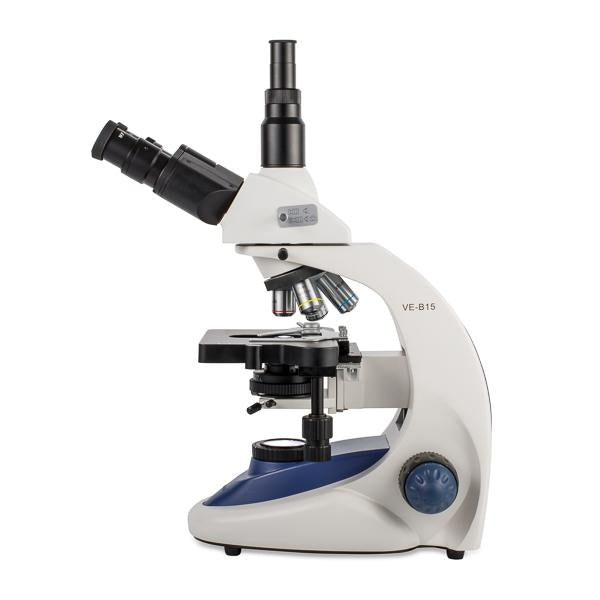

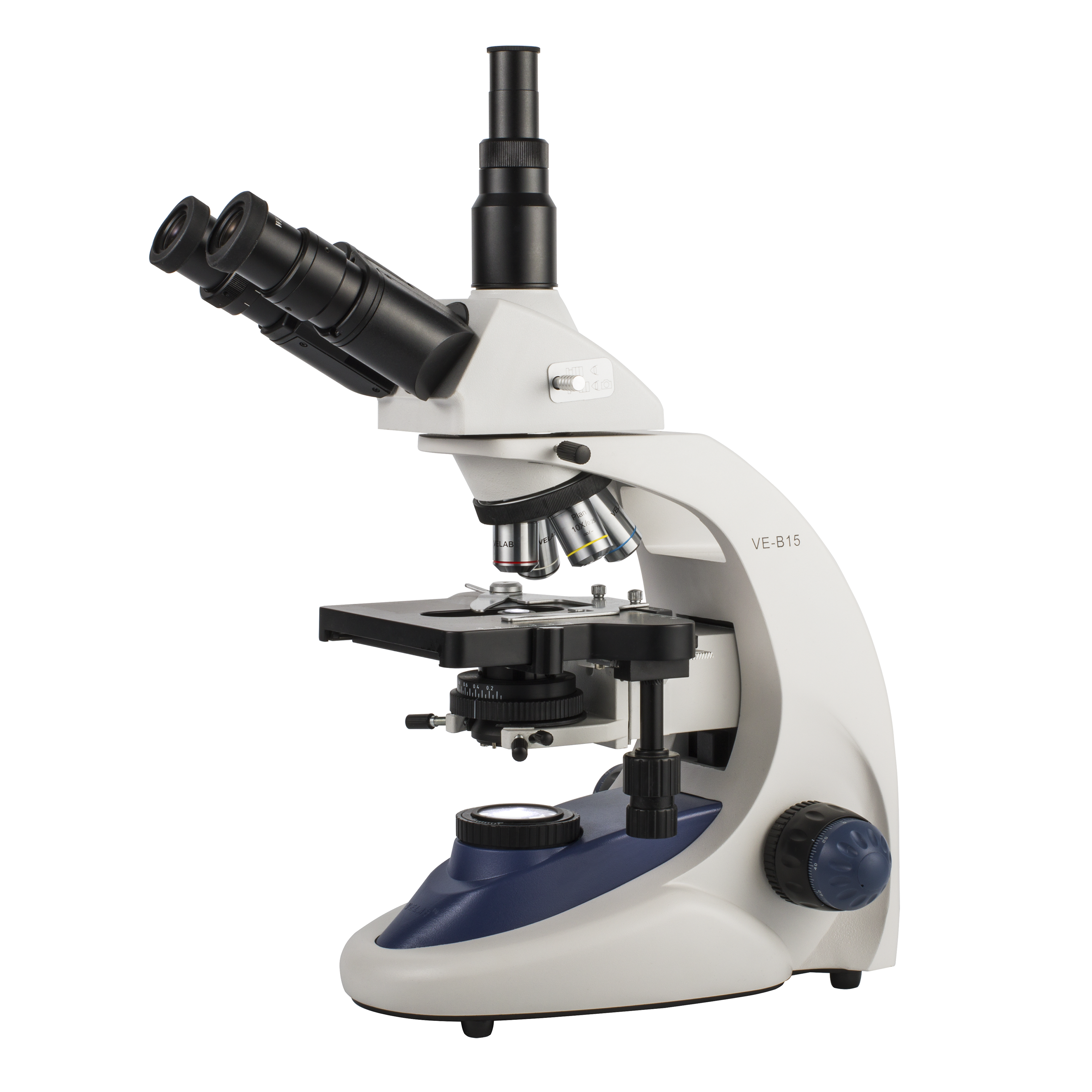

VE-B15 Trinocular Microscope

SKU: VE-B15

$1,155.00

The VE-B15 is a trinocular microscope, ideal for research, higher education and routine work in clinical laboratories. Its plan achromatic objectives with infinite correction offer improvement of optical aberrations for the observation of higher quality images. It has objectives that provide a wide field of observation and its Kohler LED lighting makes it a very complete and versatile device.

It is adaptable to the needs of the user, its third eyepiece allows the integration of digital devices for data storage and it is also compatible with the optional configuration for the polarization set.

Technical DATA

Ocular: WF 10X/22mm

Nosepiece: Quadruple

Eyepiece: 4X, 10X, 40X (S), 100X (S) (oil)

Optical System: Infinity-corrected Plan Achromatic

Stage: Double layer with coaxial movement X -Y 150 x 132 mm / 5.9" x 5.1"

Condenser: Abbe, N.A. 1.25 with elevator

Diaphragm: Iris type

Focus: Coarse and fine anti-slip control knob

Ilumination: Kohler LED

Dimensions: 180 x 410 x 285 mm / 7" x 16.1" x 11.2"

Power Supply: Three 1.2V AA rechargeable batteries (included) 110-240V, 50/60 Hz AC adapter.

MAIN FEATURES

Diopter adjustment in an eyepiece

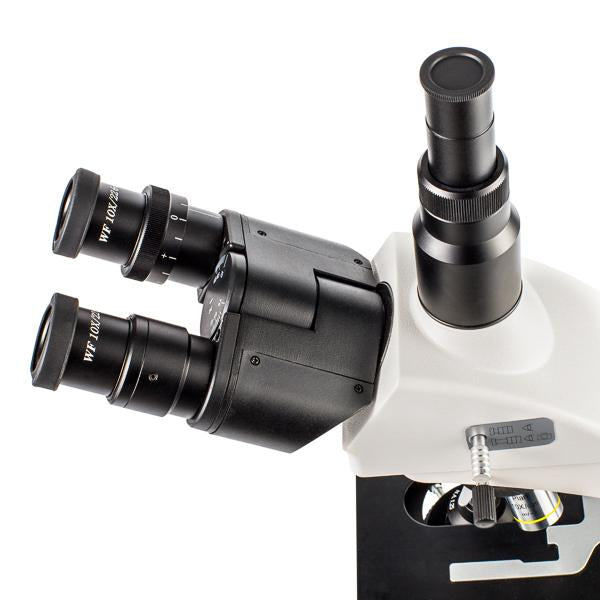

Siedentopf type Trinocular Head
Head inclined at 30° and rotable 360°
Interpupillary distance of 48 - 75 mm
Phototube with 23 mm diameter, compatible with VELAB, LX series cameras and VE-SCOPEPAD tablet
Stable, robust, reinforced and easy to transport
Lighting with intensity adjustment and field diaphragm in lamp for Kohler ilumination
Stage with vernier, milimeter scale, caliper and stop with height adjustment

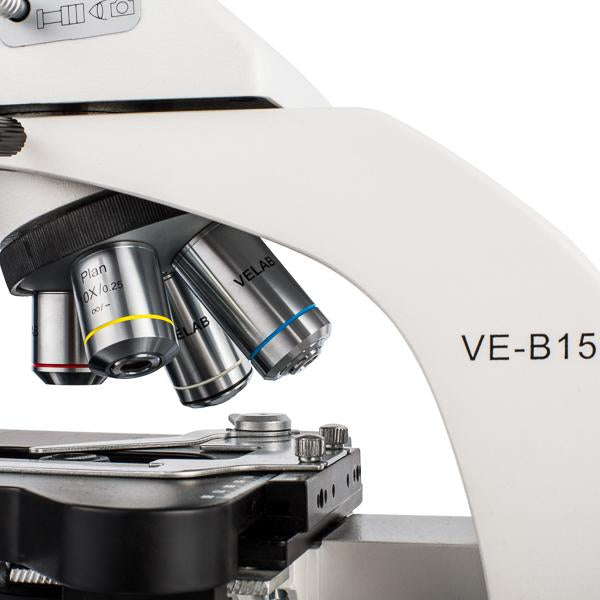

Objectives with colored rings
