TYThe ideal microscope for all kinds of basic and advanced techniques. The VE-B2 complies with the necessary characteristics for routine work in clinical laboratories. Its eyepieces provide a wide field of observation and its extensive stage allows a comfortable displacement through the sample. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
TECHNICAL DATA
| Eyepieces: WF 10x/20 mm |
| Nosepiece: Quadruple |
| Objectives: 4X, 10X, 40X (S),100X (S) (oil) |
| Optical system: Achromatic |
| Stage: Double layer with coaxial movement X-Y 160 x 140mm / 6.2" x 5.5" |
| Condenser: Abbe, N.A. 1.25 with elevator |
| Diaphragm: Iris type |

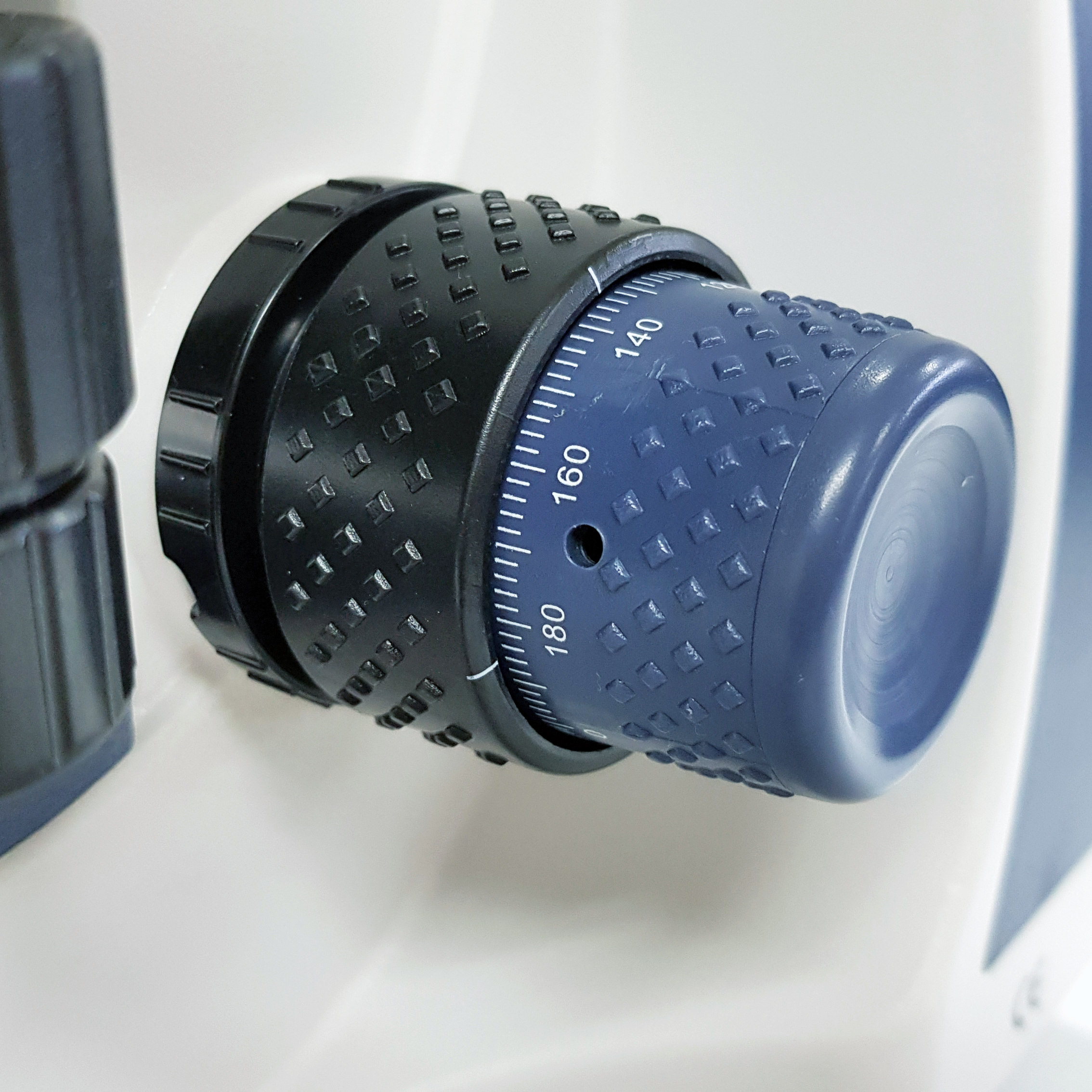

| Focus: Coarse and fine anti-slip control knob |
| Ilumination: LED |
| Dimensions: 200 x 420 x 280 mm / 7.8" x 16.7" x 11" |
| Power supply: Three 1.2V AA rechargeable batteries (included), 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Diopter adjustment in one eyepiece
- Siedentopf type binocular head
- Head inclined at 30° and rotatable 360°
- Interpupillary distance of 48 - 75 mm
- Objectives with anti-slip and colored ring
- Stative, robust, reinforced and easy to transport
- Lighting with intensity adjustment
- Rechargeable batteries incorporated into the stand
- Stage with vernier, millimeter scale, caliperand stop with height adjustment
Applications
- Education: upper grade levels
- Clinical
- Research
ACCESSORIES INCLUDED
- AC/DC Adapter
- Color filters green, yellow and blue
- Dust cover.
- Immersion oil
Warranty
1 yerars limited warranty
