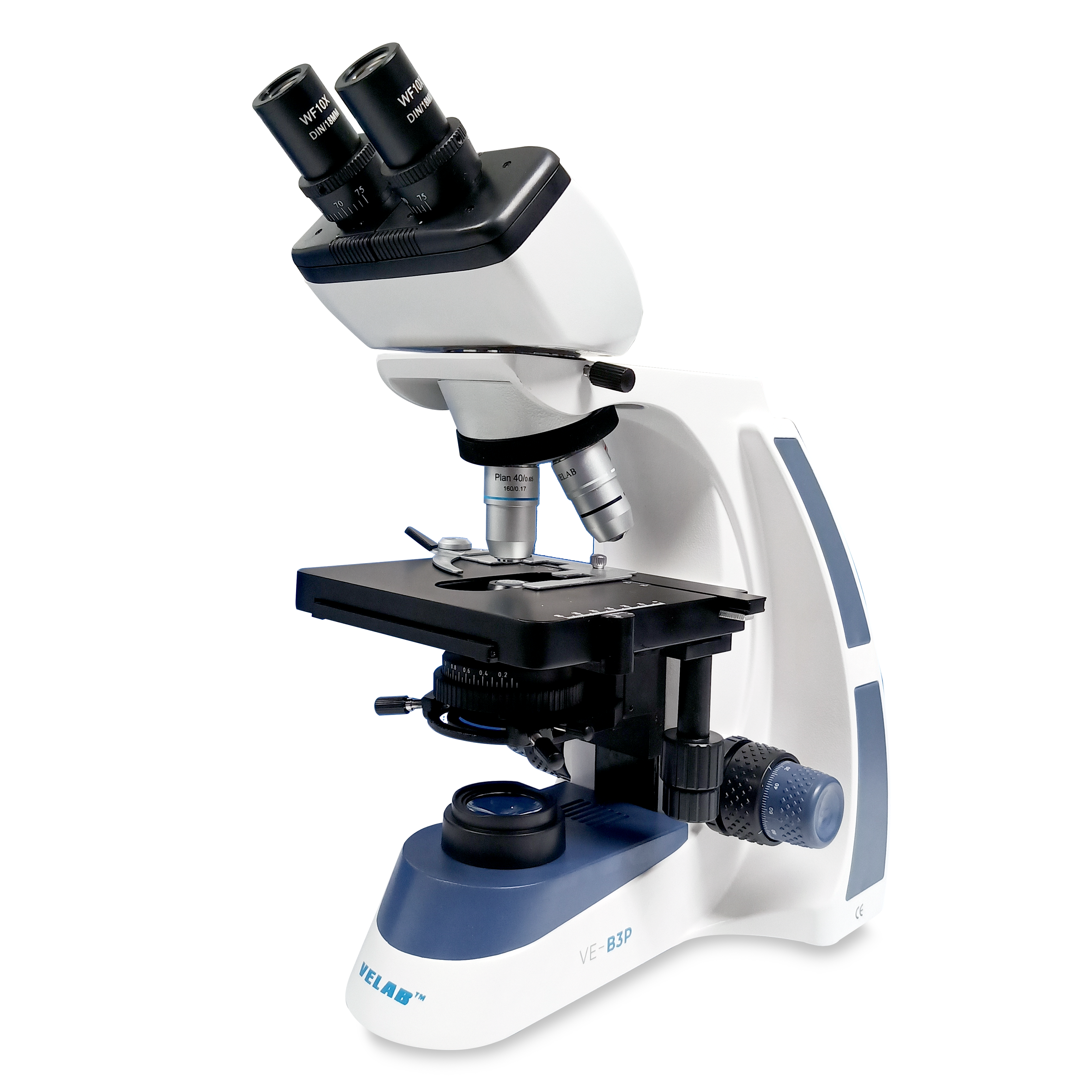

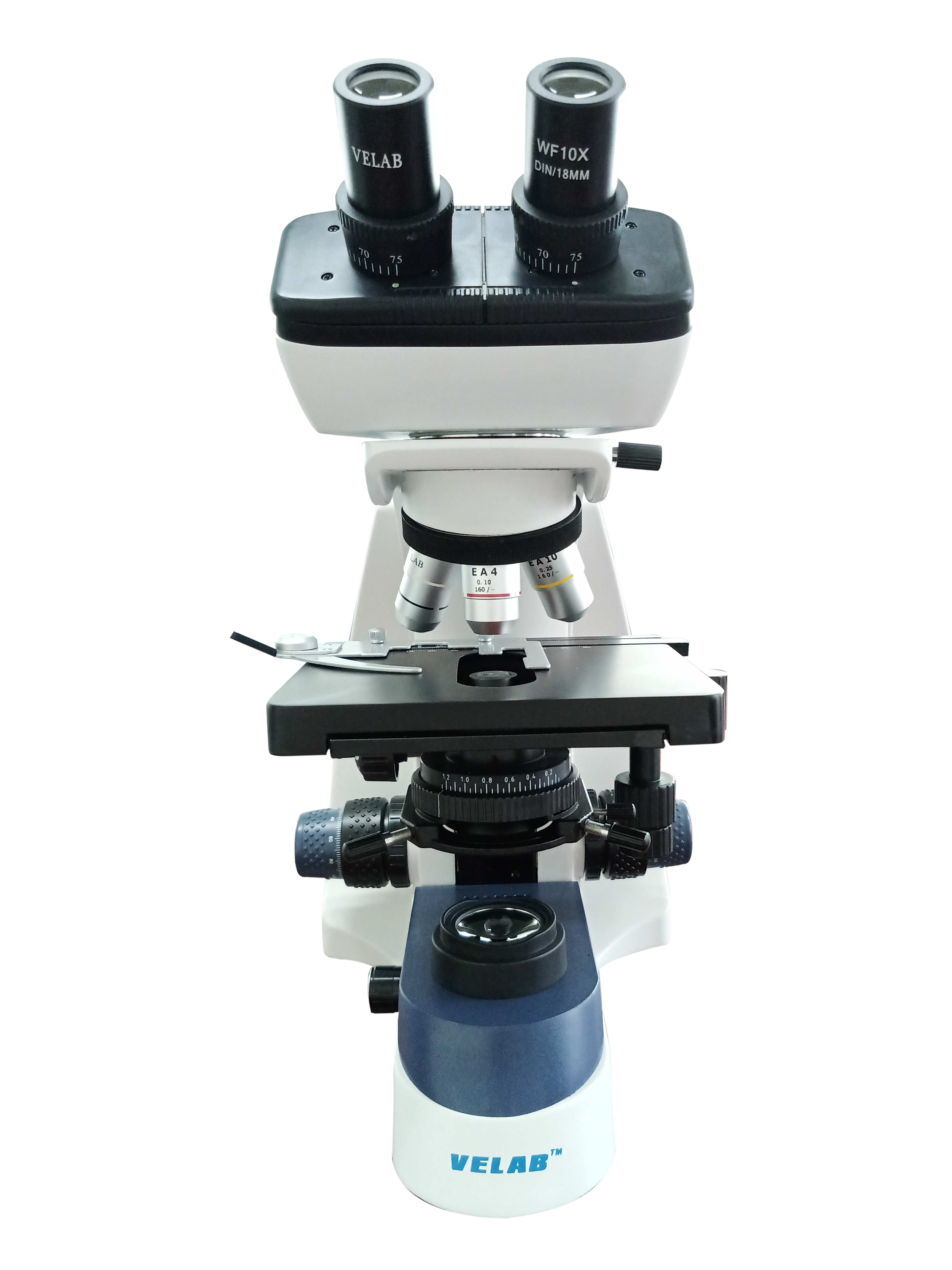

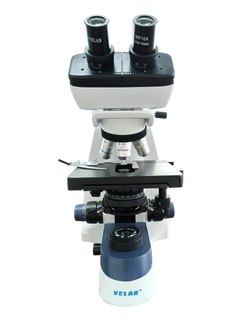

Equipped with diopter adjustment in both eyepieces, the VE-B3 can satisfy all kind of basic and advanced techniques. It complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
TECHNICAL DATA
| Eyespieces: WF 10X/18 mm |
| Nosepiece: Quadruple |
| Objectives: 4X, 10X, 40X (S) 100X (S) (oil) |
| Optical System: Achromatic |

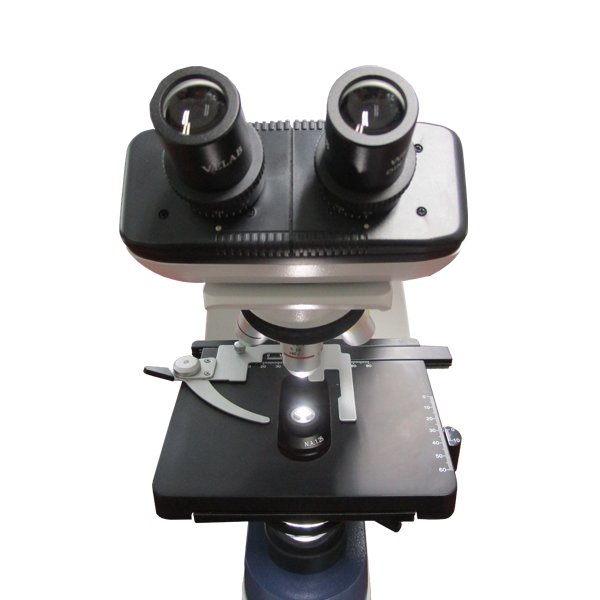

| Stage: Doble layer with coaxial movement X-Y 160 x 140 mm / 6.2" x 5.5" |
| Condenser: Abbe, N.A. 1.25 with elevator |
| Diaphragm: Iris type |
| Focus: Coarse and fine anti-slip control knob |
| Iluminación: LED |
| Dimensions: 270 x 350 x 200 / 10.6" x 13.7" x 7.8" |
| Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
Main features
- Diopter adjustment in both eyepieces
- Sliding binocular head
- Head inclined at 45° and rotatable 360°
- Interpupillary distance of 50 - 75 mm
- Objectives with anti-slip and colored rings
- Stative robust, reinforces and easy to transport
- Lighting with intensity adjustment
- Stage with vernier, milimeter scale, clamp and stop with height adjustment
Applications
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- Power cord
- Color filters green, yellow and blue
- Dust cover.
- Immersion oil.
Warranty
10-years limited warranty
