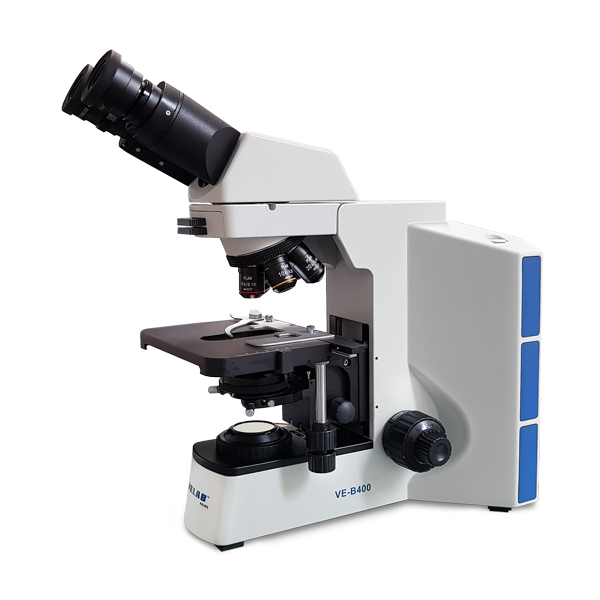

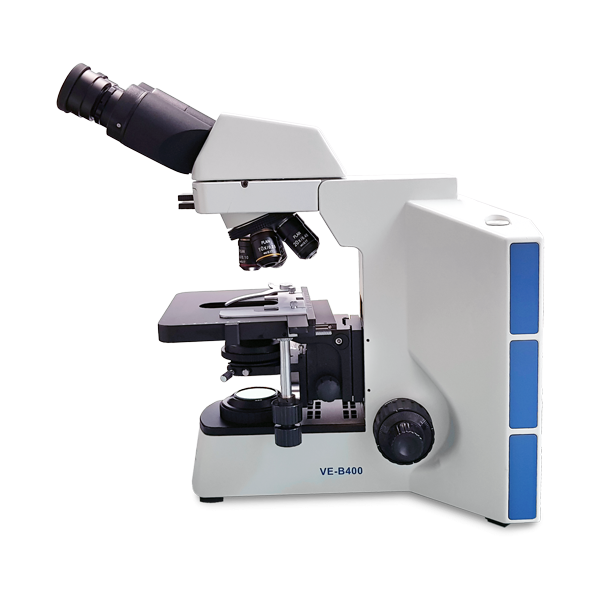

VE-B400 Biological Microscope

SKU: VE-B400

$2,500.00

Biological microscope for professional use, equipped with improved Koehler lighting system that allows observing clear and bright images under each magnification. Used for clinical diagnosis, experimentation for higher teaching and pathological tests.

High and steady structure, fully metallized at high pressure and supports Allen key on the upper left side. Provides optional configurations for various applications.

TECHNICAL DATA

EYEPIECES: PL 10X/22 mm

NOSEPIECE: Quintuple

OBJECTIVES: 4X, 10X, 40X (S),100X (S) (oil)

OPTICAL SYSTEM: Infinity-corrected plan achromatic

STAGE: Double layer with coaxial movement X-Y, 175 x 145 mm / 6.8" x 5.7"

CONDENSER: Achromatic swing-out condenser Abbe, N.A. 1.2/0.22 Equipped with adapter bracket for additional configurations (not included)

DIAPHRAGM: Iris type with filter holder.

FOCUS: Coarse and fine anti-slip control knob (precision 0.001 mm)

ILUMINATION: Kohler Halogen 6V/30W

POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter.

DIMENSIONS: 463 x 408 x 250 mm / 18.2" x 16" x 9.8"

MAIN FEATURES

Diopter adjustment in one eyepiece.
Protective rubbers on eyepieces.
Head inclined at 30 ° with 360° rotable eyepiece tube.
Gemel type Binocular Head.
Objectives with colored rings.
Interpupillary distance of 48 - 75 mm.
Illumination with intensity adjustment and field diaphragm in the lamp.
Vernier, millimeter scale and calipers.
Equipped with adapter for optional configurations as phase contrast, darkfield, polarising and fluorescence (not included).
Eyepieces with PL correction, to favor observation.
Ocular tubes with thumb screw, rotatable 180 ° and 360 °
