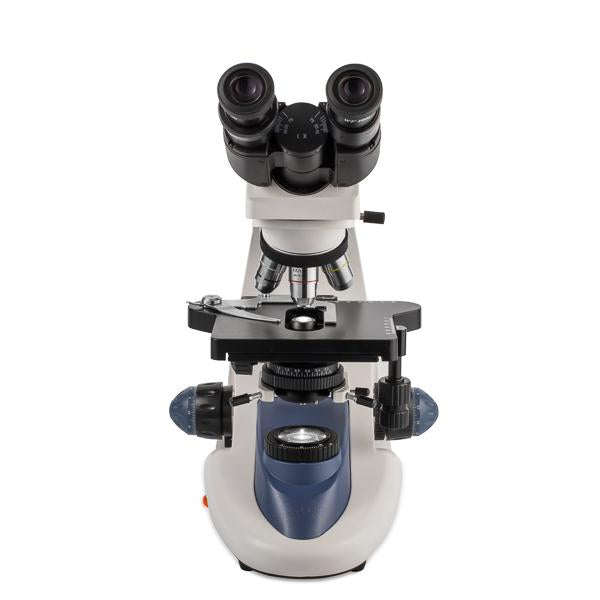

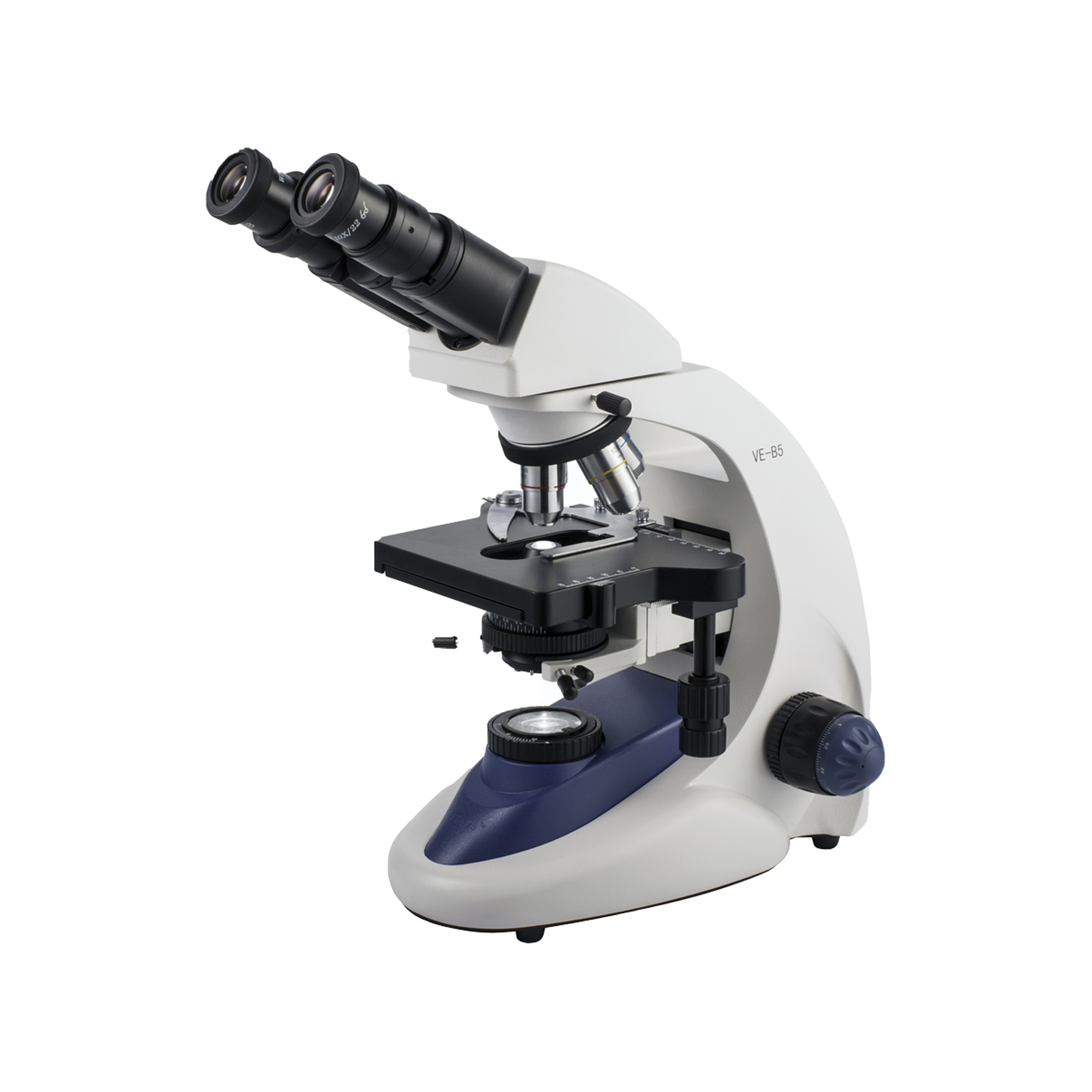

The VE-B5 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device.
The VE-B5 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
TECHNICAL DATA
| EYEPIECES: WF 10x/22mm |
| NOSEPIECE: Quadruple |
| OBJECTIVES: 4X, 10X, 40X (S)100X (S) (oil) |
| OPTICAL SYSTEM: Infinity-Corrected Achromatic |
| STAGE: Double layer with coaxial movement X-Y 150 x 132 mm / 5.9" x 5.1" |

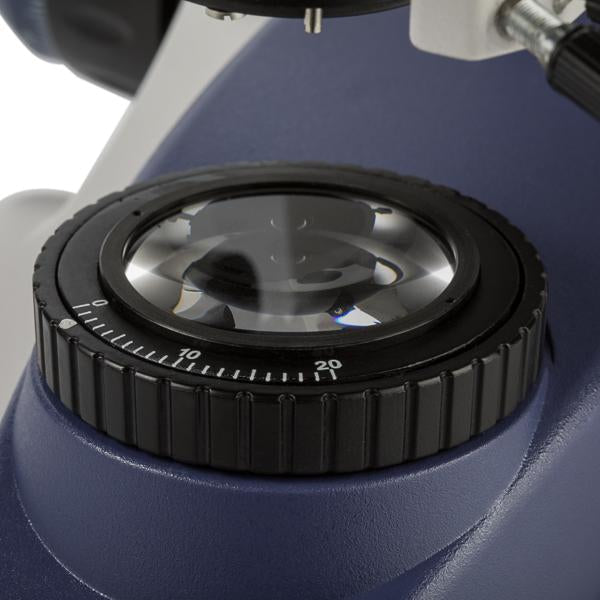

| CONDENSER: Abbe, A.N. 1.25 with elevator |
| DIAPHRAGM: Iris type |
| FOCUS: Coarse and fine anti-slip control knob |
| ILUMINATION: Kohler LED |
| POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
| DIMENSIONS: 180 x 430 x 290 mm / 7.08" x 16.9" x 11.41" |
main features
- Diopter adjustment in an eyepiece.
- Siedentopf type Binocular Head.
- Head inclined at 30 ° and rotatable 360°.
- Interpupillary distance of 48 ~ 75 mm.
- Objectives with colored rings.
- Stative, robust, reinforced and easy to transport.
- Lighting with intensity adjustment and field diaphragm in lamp.
- Stage with vernier, millimeter scale, caliper and stop with height adjustment.
- Interchangeable condensers for phase contrast and darkfield.
Applications
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- Color filters Blue, green and yellow
- Dust cover.
- Immersion oil.
- AC/CD adapter
WARRANTY
10 years limited warranty
