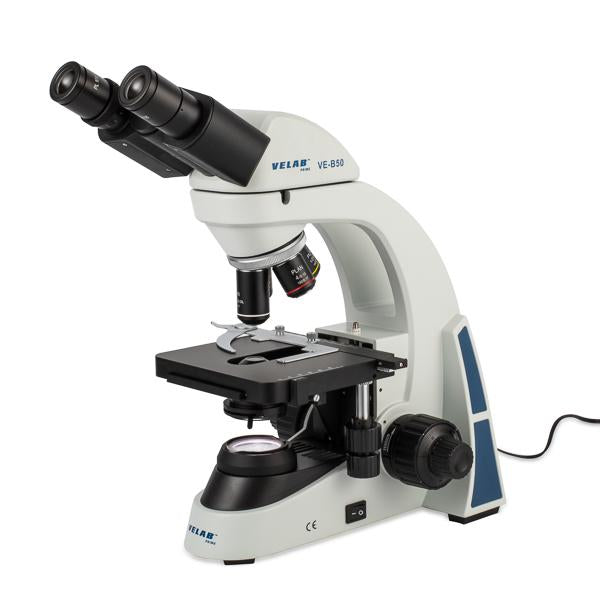

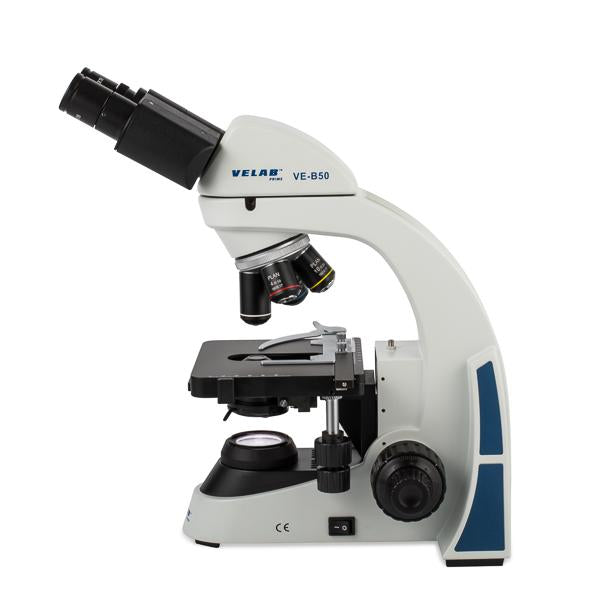

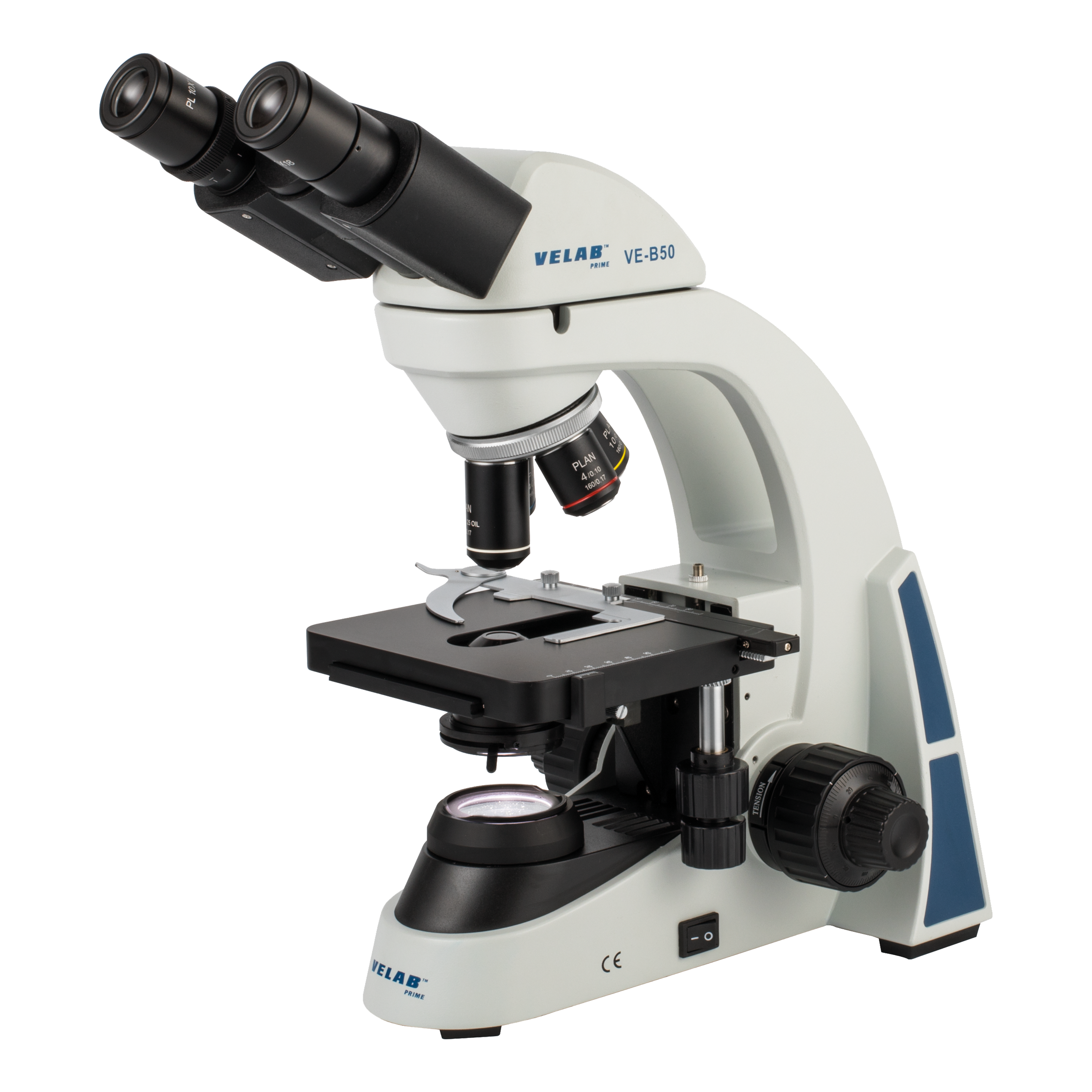

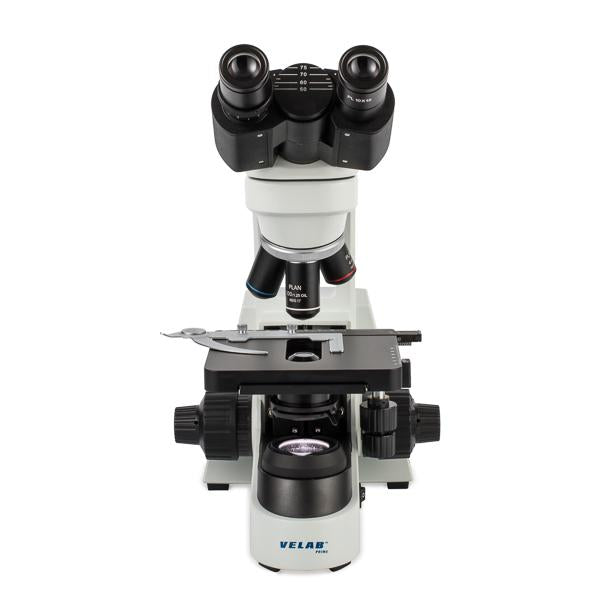

The VE-B50 is a biological microscope designed for the development of advanced microscopy techniques. Applicable in research, higher education and clinical laboratories for diagnostic purposes and ideal for the detection of pathologies.

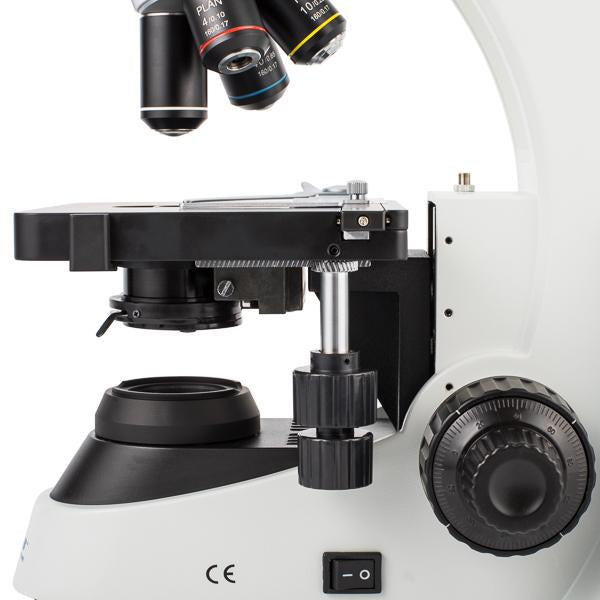

Its stage allows the fine and smooth displacement of the sample, the importance of the sample in the histology and cytology tests. It has excellent optical quality components and long-life LED illumination. The VE-B50 offers diopter adjustment in one of its parameters to compensate for the difference in focus that is natural in the user’s eyes.
TECHNICAL DATA
| EYEPIECES: PL 10X/18 mm |
| NOSEPIECE: Quadruple |
| OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil) |
| OPTICAL SYSTEM: Plan Achromatic |
|
STAGE: Double layer with coaxial movement X-Y, 140 x 132 mm / 5.5” x 5.1”. |
| CONDENSER: Abbe, N.A. 1.25 |
|
DIAPHRAGM: Iris type with filter holder. |
|
FOCUS: Coarse and fine anti-slip control knob (precision 0.002 mm). |
| ILUMINATION: LED 3W |
| DIMENSIONS: 210 x 365 x 323 mm / 8.2" x 14.3" x 12.7" |
|
POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter |
Main features
- Interpupillary distance of 50 - 75 mm.
- Diopter adjustment ±5 in one eyepieces.
- Heads inclined at 30 °.
- Stative, robust and reinforced. Easy to transport.
- Plates with vernier, millimeter scale and calipers.
- Objectives with colored rings.
- Lighting with intensity adjustment.
- Siendentopf type binocular heads.
Applications
- Education: Upper grade levels
- Research
- Clinical
Accessories included
- Dust cover
- Immersion oil
- Power cord
Warranty
10-years limited warranty
