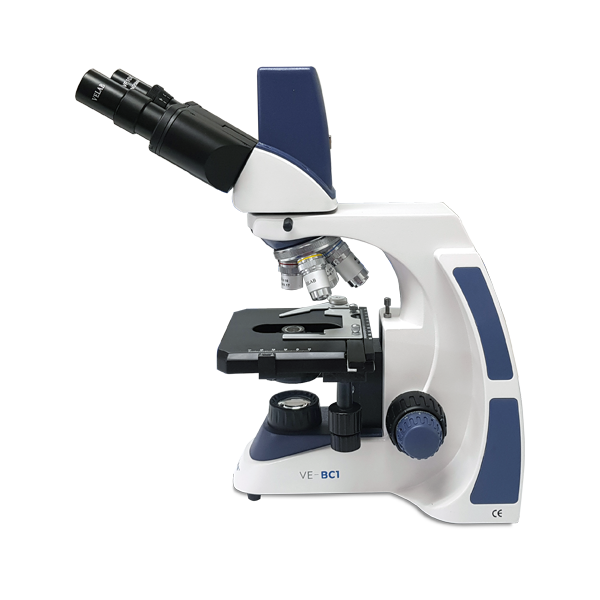

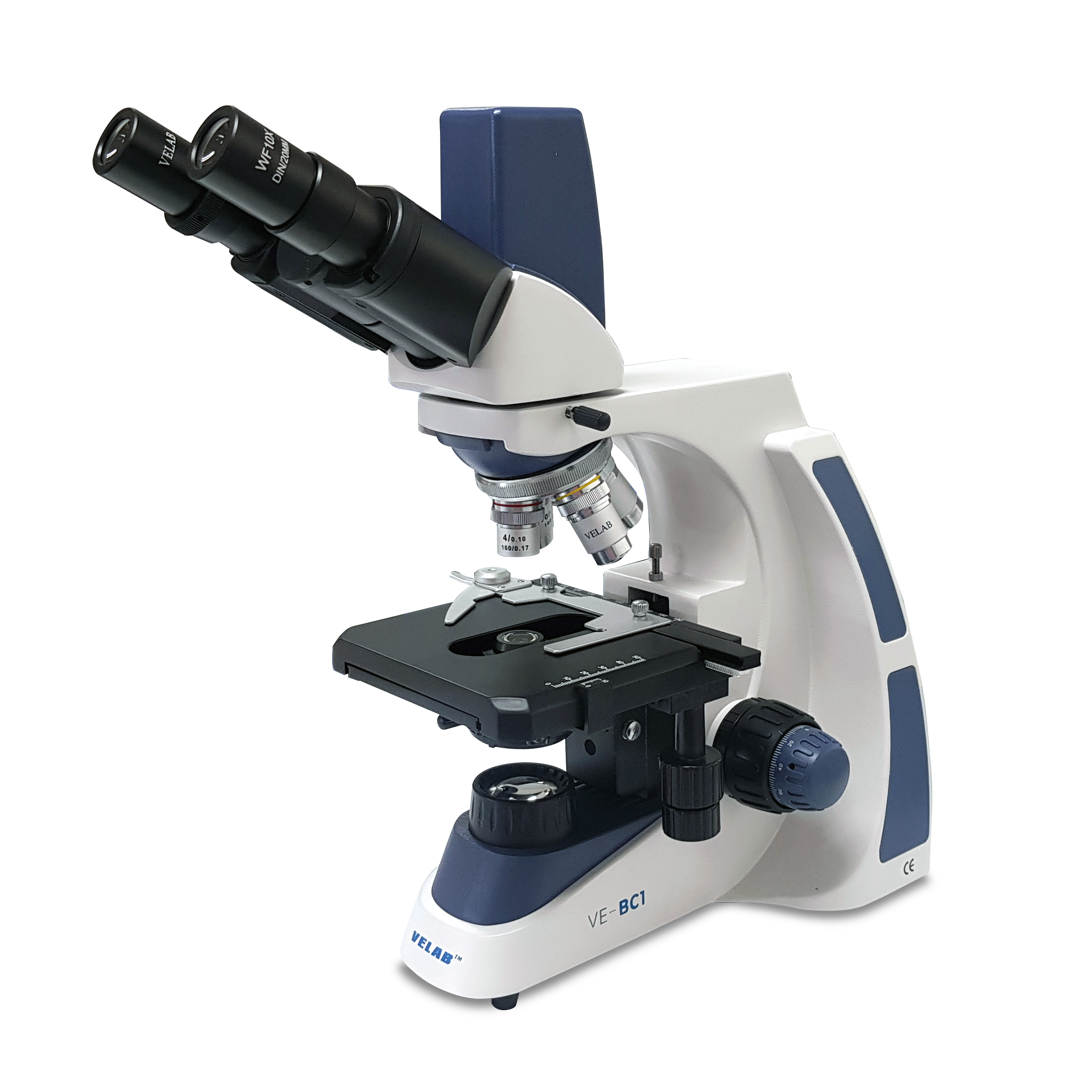

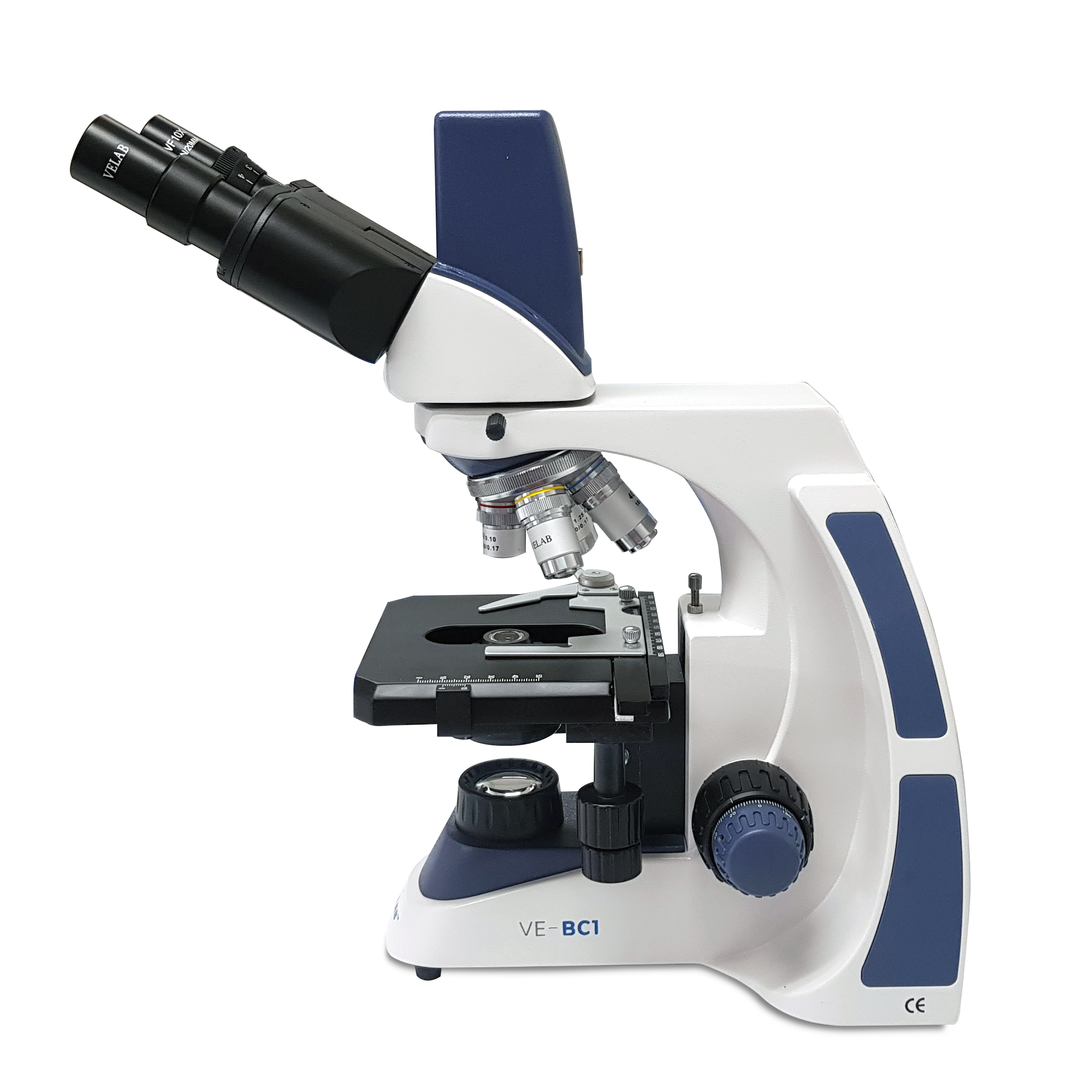

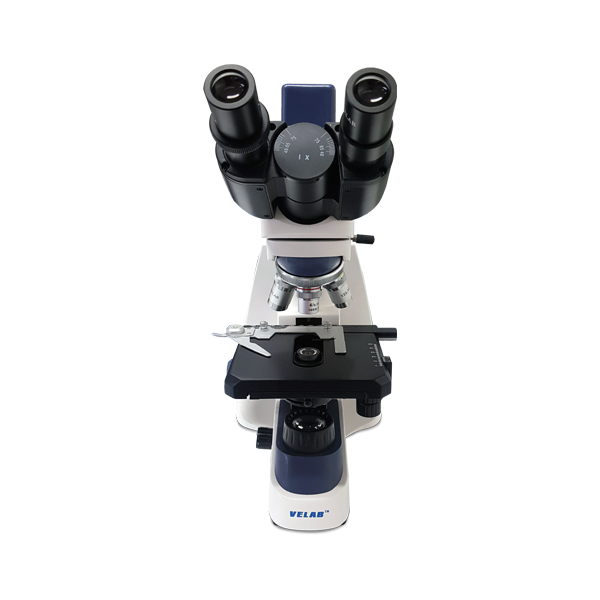

Equipped with a 3.0MP digital camera, the VE-BC1 is the ideal device for teaching secondary and higher education courses, as well as for analysis, group observation and evidence documentation during diagnosis, basic and intermediate research.
It includes easy operation software compatible with Windows operating systems. It is practical for the observation of images in real time and for storing obtained captures on your computer.
TECHNICAL DATA
| Eyepieces: WF 10X/20 mm |
|
Camera: 3.0 MP, integrated |
| Nosepiece: Quadruple |
| Objectives: 4X, 10X, 40X (S) 100X (S) (oil) |
|
Optical System: Achromatic |
| Stage: Double layer with coaxial movement X-Y 135 x 135 mm / 5.3" x 5.3" |
| Condenser: Abbe, N.A. 1.25 |
| Diaphragm: Iris type with filter holder. |
| Focus: Coarse and fine anti-slip control knob |
| Ilumination: LED |
|
Operating system: Microsoft Windows7/8 /10 /11 |
| Dimensions: 180 x 375 x 250mm / 7.0" x 14.7" x 9.8" |
| Power supply: AC 110240V, 50/60 Hz |
MAIN FEATURES
- VelabView software for camera operation via a computer.
- Lighting with intensity adjustment.
- Integrated digital camera.
FUNCTIONS
Photo capture, burst mode photo, and video recording. Image parameter adjustment, exposure, and automatic white balance, as well as RGB color channel adjustments. Real-time video processing, including grayscale, binarization. And negative image. Image counting, real-time measurement of lengths, areas, and angles, HDR, and EDF.
APPLICATIONS
- Education: Basic grade levels
- Clinical
- Research
ACCESSORIES INCLUDED
- Dust cover
- Immersion oil
- USB cable
- Power cord
- Software
- Color filters green, yellow and blue
- Eyepieces WF20x/15mm
WARRANTY
1-years limited warranty
