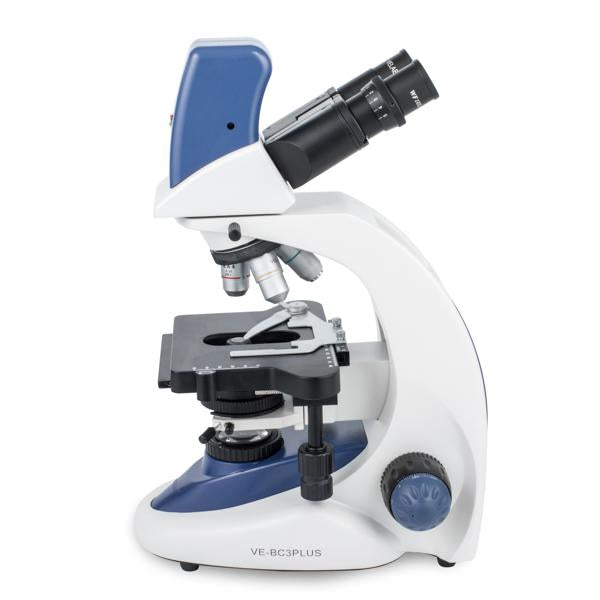

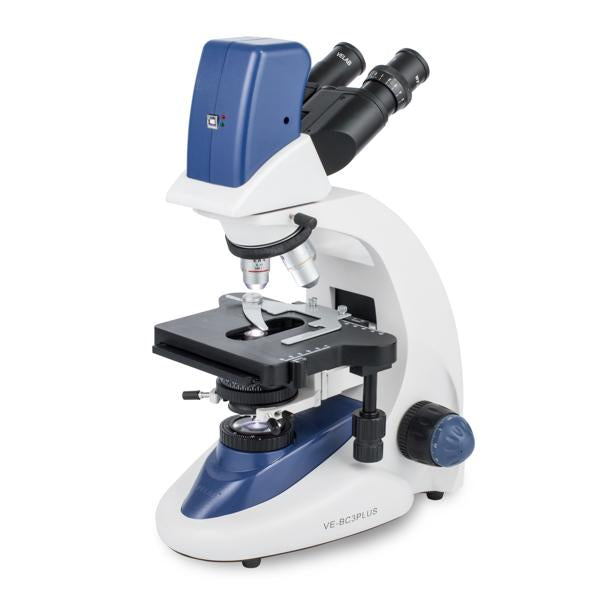

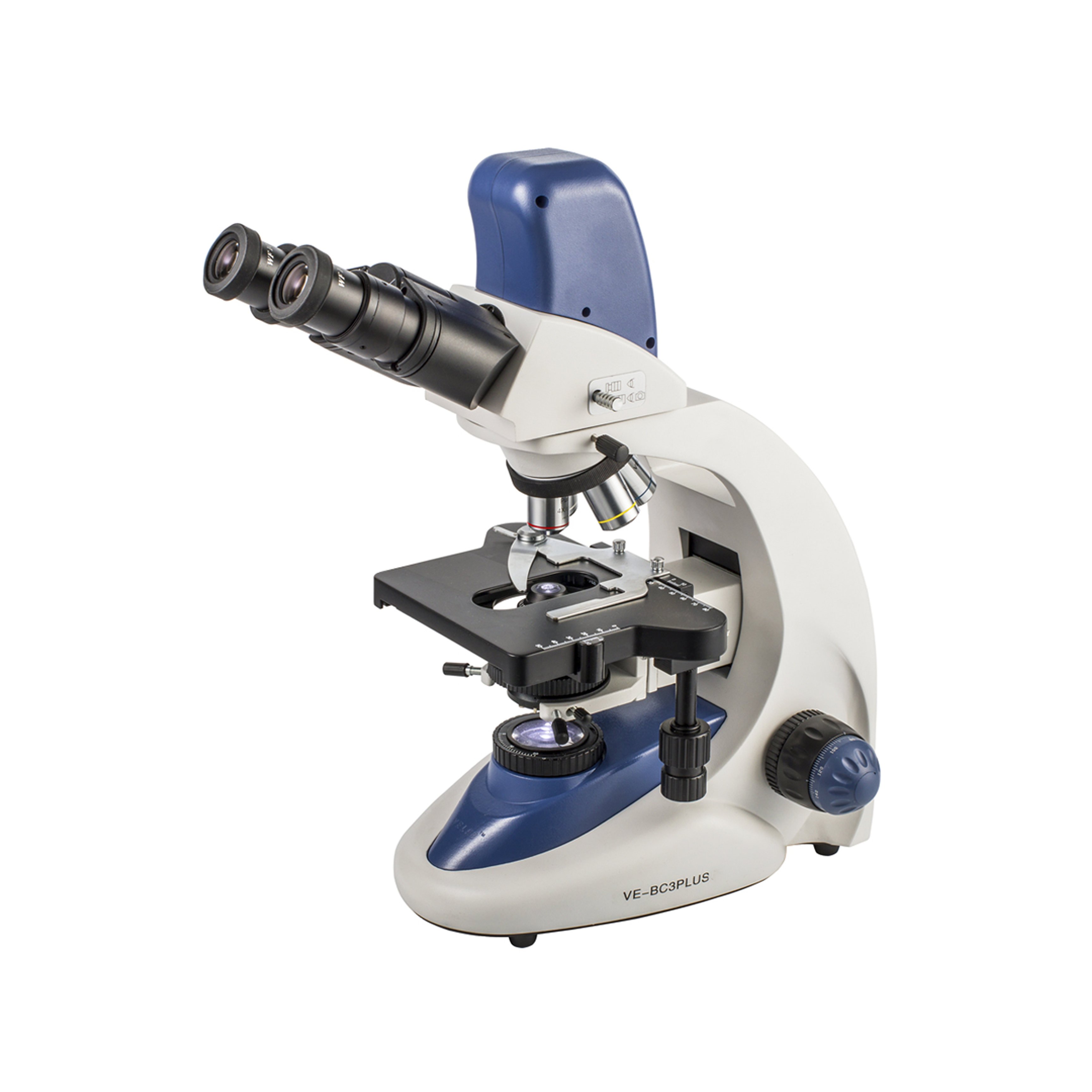

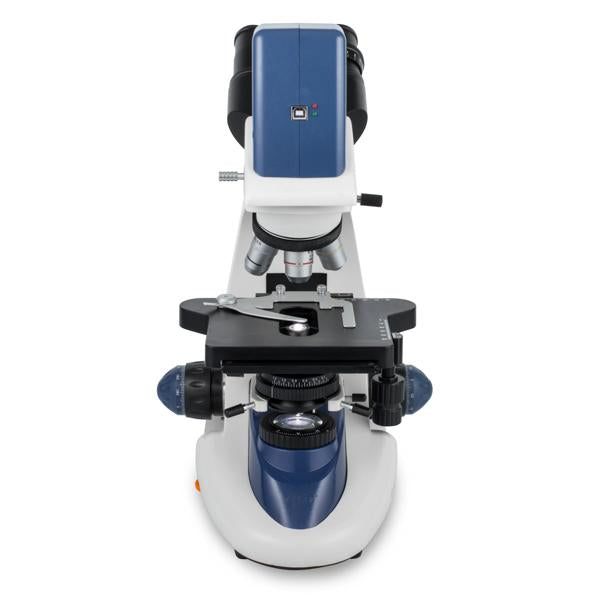

The VE-BC3 PLUS digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
TECHNICAL DATA
| Eyepiece: WF 10X/20mm |
| Camera: 5.0MP integrated |
| Nosepiece: Quadruple |
| Objectives: 4X, 10X, 40X (S), 100X (S) (oil), |
|
Optical system: Achromatic |
| Stage: Double layer with coaxial movement X-Y, 150 x 132 mm/5.9" x 5.1" |
| Condenser: Abbe, N.A. 1.25 with elevator |
| Diaphragm: Iris type with filter holder. |
| Focus: Coarse and fine anti-slip control knob |
| Ilumination: Kohler LED |
|
Operating system: Microsoft Windows 7/ 8 / 10 / 11 |
| Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
|
Dimensions: 180 x 445 x 295 mm /7.0" xx 17.5" x 11.6" |
Main features
- Siedentopf type Binocular Head.
- VelabView software for camera operation via a
- Lighting with intensity adjustment and field diaphragm in lamp. computer.
Functions
Photo capture, burst mode, and video recording. Image parameter adjustments, auto exposure, and automatic while balance, as well as RGB color channel adjustments. Real-time video processing, including grayscale, binarization, and negative image. Image counting, real-time measurement of lengths, areas, and angles, HDR and EDF.
Applications
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- Blue, green and yellow filters.
- Dust cover.
- Immersion oil.
- Power cord.
- Software
- USB cable.
- Stage micrometer
WARRANTY
10-years limited warranty.
