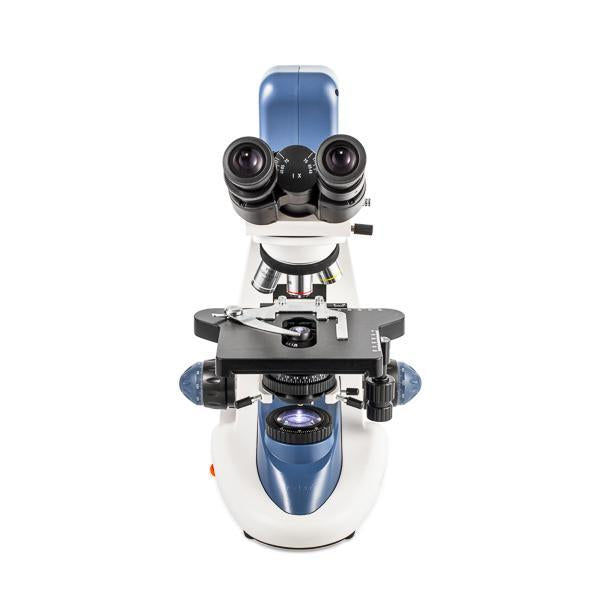

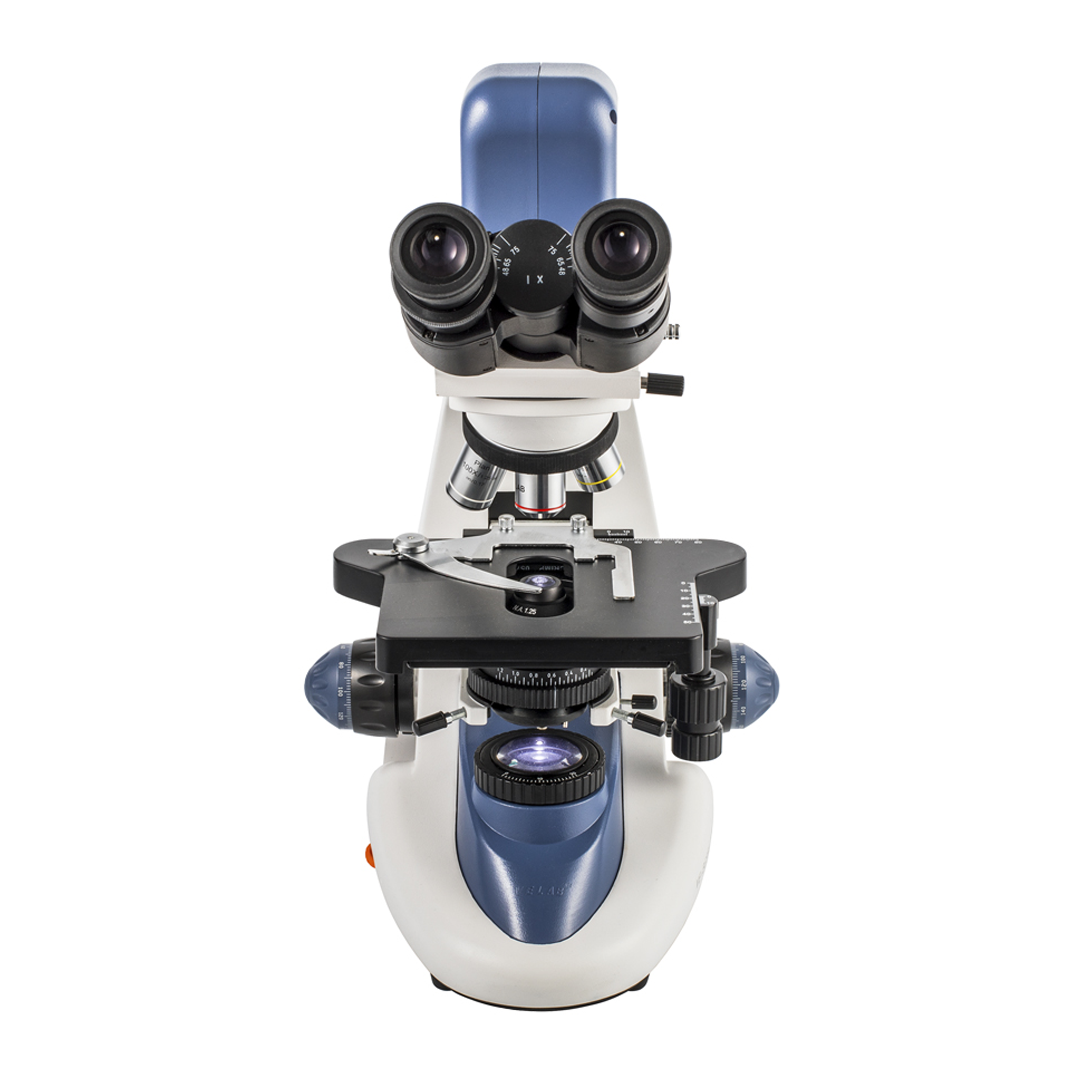

The VE-BC3 PLUS PLAN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real-time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research, and diagnosis.
TECHNICAL DATA
| Eyepieces: WF 10x/22 mm |
| Camera: 5.0 MP, integrated |
| Nosepiece: Quadruple |

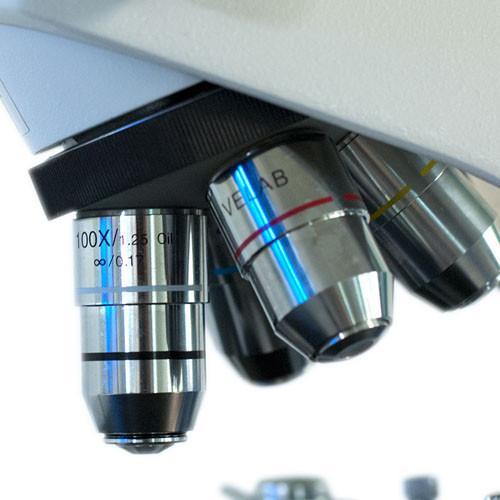

| Objectives: 4X, 10X, 40X (S), 100X (oil) (S) |
| Optical System: Infinity-Corrected Plan achromatic |
| Stage: Double layer with coaxial movement X-Y 150 x 132mm/5.9" x 5.1" |
| Condenser: Abbe, A.N. 1.25 with elevator |
|
Diaphragm: Iris type with filter holder. |
| Focus: Coarse and fine anti-slip control knob |
| Ilumination: Kohler LED |
|
Operating system: Windows 7/ 8 / 10 / 11 (32 & 64 bit) |
| Dimensions: 180 x 445 x 295 mm / 7.0" x 17.5" x 11.6" |
| Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Siedentopf type Binocular Head.
- Lighting with intensity adjustment and field diaphragm in lamp.

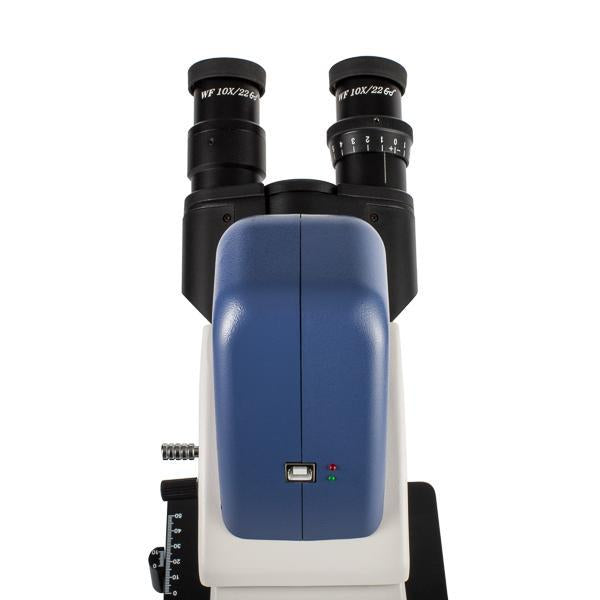

- Integrated digital camera.
- VelabView software for camera operation via a computer.
FUNCTIONS
Photo capture, burst mode, and video recording. Image parameter adjustments, auto exposure, and automatic while balance, as well as RGB color channel adjustments. Real-time video processing, including grayscale, binarization, and negative image. Image counting, real-time measurement of lengths, areas.
APPLICATIONS
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- USB cable
- Immersion oil
- Dust cover
- Software
- Blue, green and yellow filter
- Stage micrometer
WARRANTY
10-years limited warranty.
