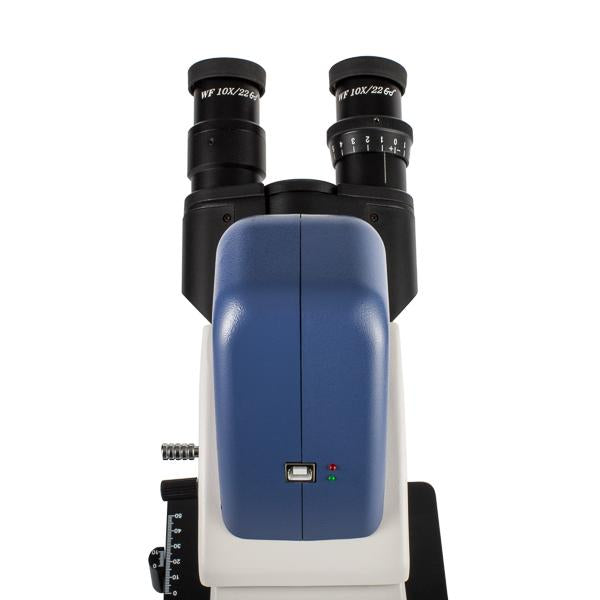

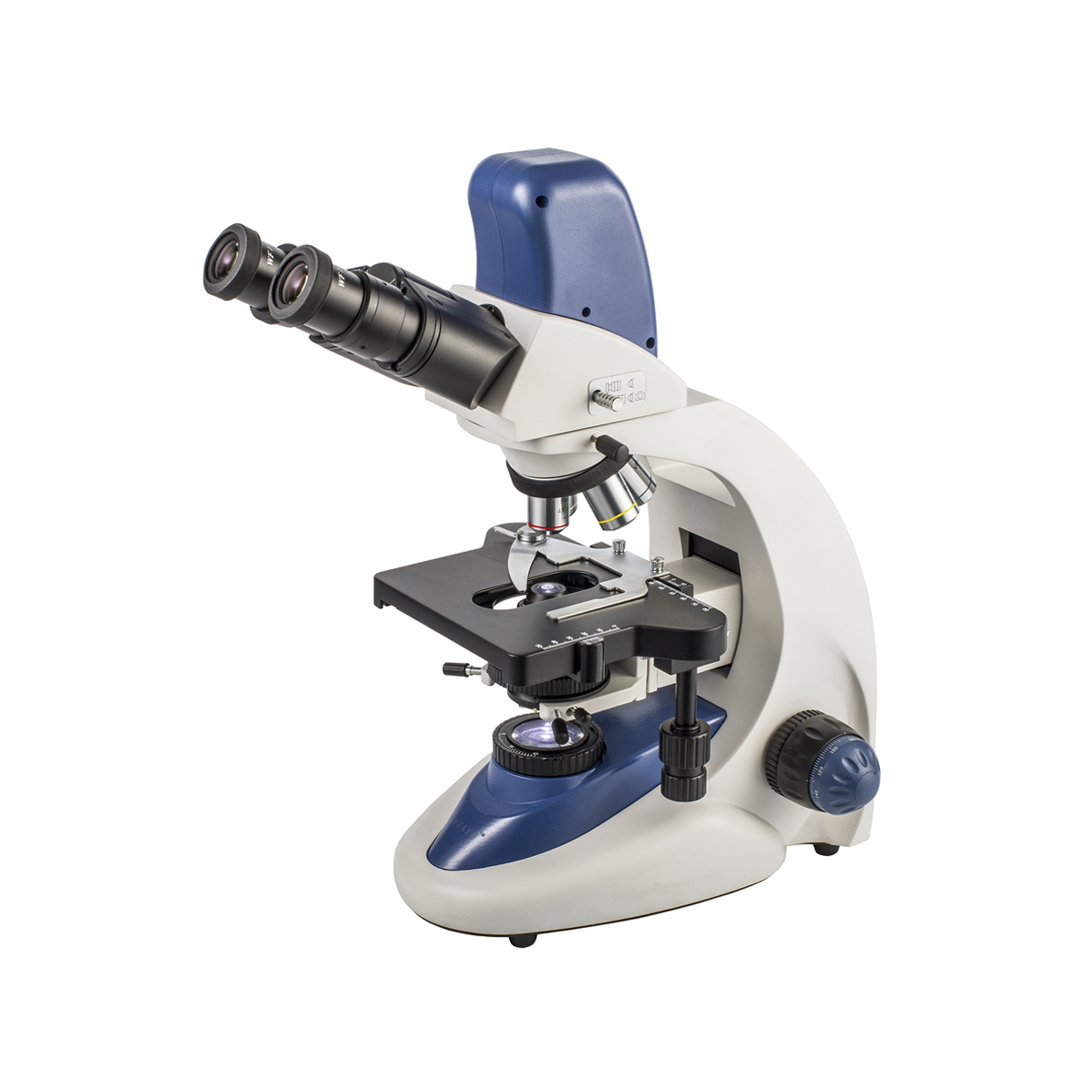

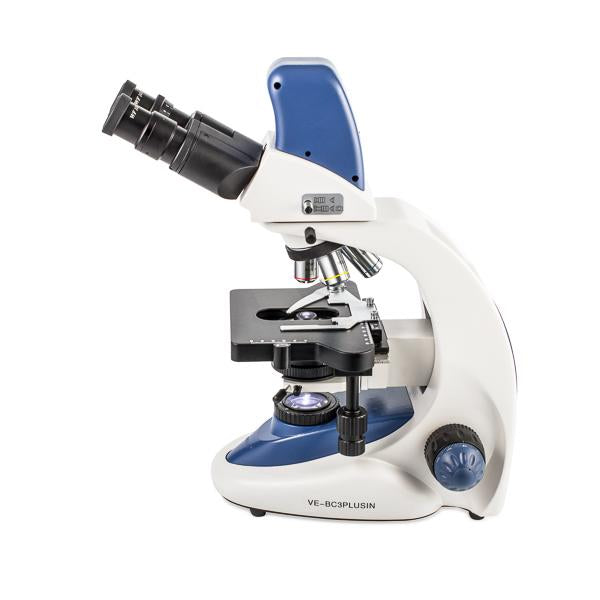

The VE-BC3 PLUS PLAN IN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its maintenance- free plate is free of frames and lateral projections and its objectives provide a wide field of observation. the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
TECHNICAL DATA
| Eyepieces: WF 10x/22 mm |
| Camera: 5.0 MP integrated |
| Nosepiece: Quadruple |
| Objectives: 4X, 10X, 40X, 100X (oil) (S) |
| Optical System: Infinity-corrected Plan Achromatic |
| Stage: Double layer with coaxial movement X-Y 150 x 132mm/5.9" x 5.1" |
| Condenser: Abbe, A.N. 1.25 with elevator |
| Diaphragm: Iris type |
| Focus: Coarse and fine anti-slip control knob |
| Illumination: Kohler LED |
|
Operating system: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit). |
| Dimensions: 180 x 445 x 295 mm / 7.0" x 17.5" x 11.6" |
| Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Diopter adjustment in an eyepiece.
- Stative, robust, reinforced and easy to transport.
- Siedentop type Binocular Head.
- Lighting with intensity adjustment and field diaphragm in lamp.
- Head inclined at 30 ° and rotatable 360°
- Interpupillary distance of 48 ~ 75 mm.
- Stage with vernier, millimeter scale, caliper and stop with height adjustment.
- Objectives with colored rings.
- Integrated digital camera.
APPLICATIONS
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- Blue, green and yellow filters.
- Dust cover.
- Immersion oil.
- Power cord.
- Software
- USB cable.
- Stage micrometer
WARRANTY
10-years limited warranty.
