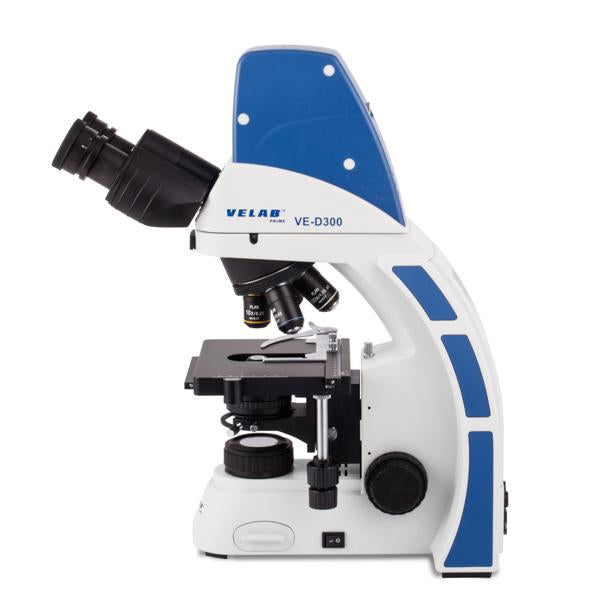

VE-D300 Digital Microscope

SKU: VE-D300

$3,128.00

The VE-D300 digital microscope was designed for professional use. It has all the virtues of a professional biological microscope, in addition to being equipped with a 5.0MP digital camera. It includes an easy-to-use software compatible with Windows operating systems, practical for editing, storing and observing images in real time. It can perform measurements in a wide range of units. Compatible with Windows 10 and lower operating systems.

The VE-D300 is ideal for the identification and analysis of biological samples in areas such as biology, medicine, pathology and microbiology. Adaptable to the needs of the user, the VE-D300 offers optional configurations for several applications.

TECHNICAL DATA

EYEPIECES: PL 10X/20 mm

NOSEPIECE: Quadruple

OBJECTIVES: 4X, 10X, 40X (S),100X (S) (oil)

OPTICAL SYSTEM: Infinity-correctes plan achromatic

STAGE: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9" x 5.5"

CONDENSER: Abbe, N.A. 1.25 with slot for additional settings (non included)

DIAPHRAGM: Iris type

FOCUS: Coarse and fine anti-slip control knob (precision 0.001 mm)

ILUMINATION: Kohler LED 3W

OPERATING SYSTEM: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit)

POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter.

DIMENSIONS: 185 x 470 x 290 mm / 7.2" X 18.5" X 11.4"

MAIN FEATURES

Diopter adjustment in both eyepieces.
Heads inclined at 30 ° with 360° rotable eyepiece tube.
Plates with vernier, millimeter scale and calipers.
Lighting with intensity adjustment.
Optical correction PL, for the best viewing.
Interpupillary distance of 50 - 75 mm.
Stative, robust and reinforced. Easy to transport.
Objectives with colored rings.
Optional accessories for phase contrast, darkfield, polarization and fluorescence (not included).
Gemel type binocular head, 5.0 MP integrated camera. It includes software
for operating and advanced digital analysis.
