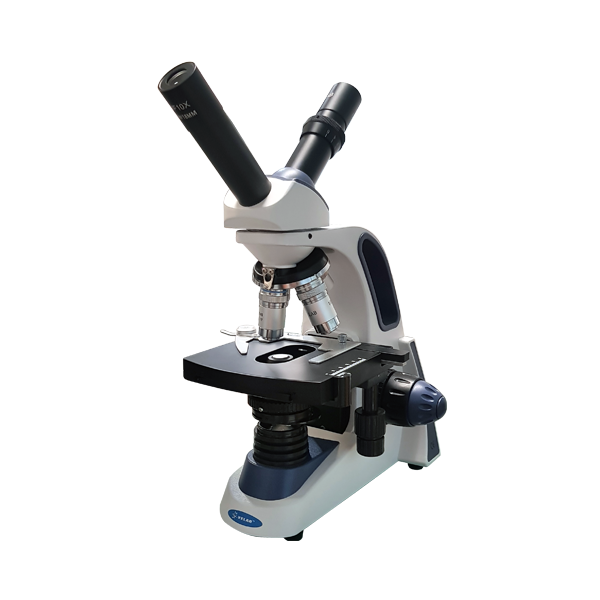

The VE-M5DTH dual view compound microscope is ideal for 2 simultaneous observations. Its area of application is not limited to mid and upper level education environments, the VE-M5DTH can also be applied to meet the basic needs in clinical laboratories. It features LED illumination and a quadruple nosepiece (with immersion objective).
Technical data
| Eyepiece: WF 10x/18 mm with block screw and pointer. |
| Nosepiece: Quadruple |

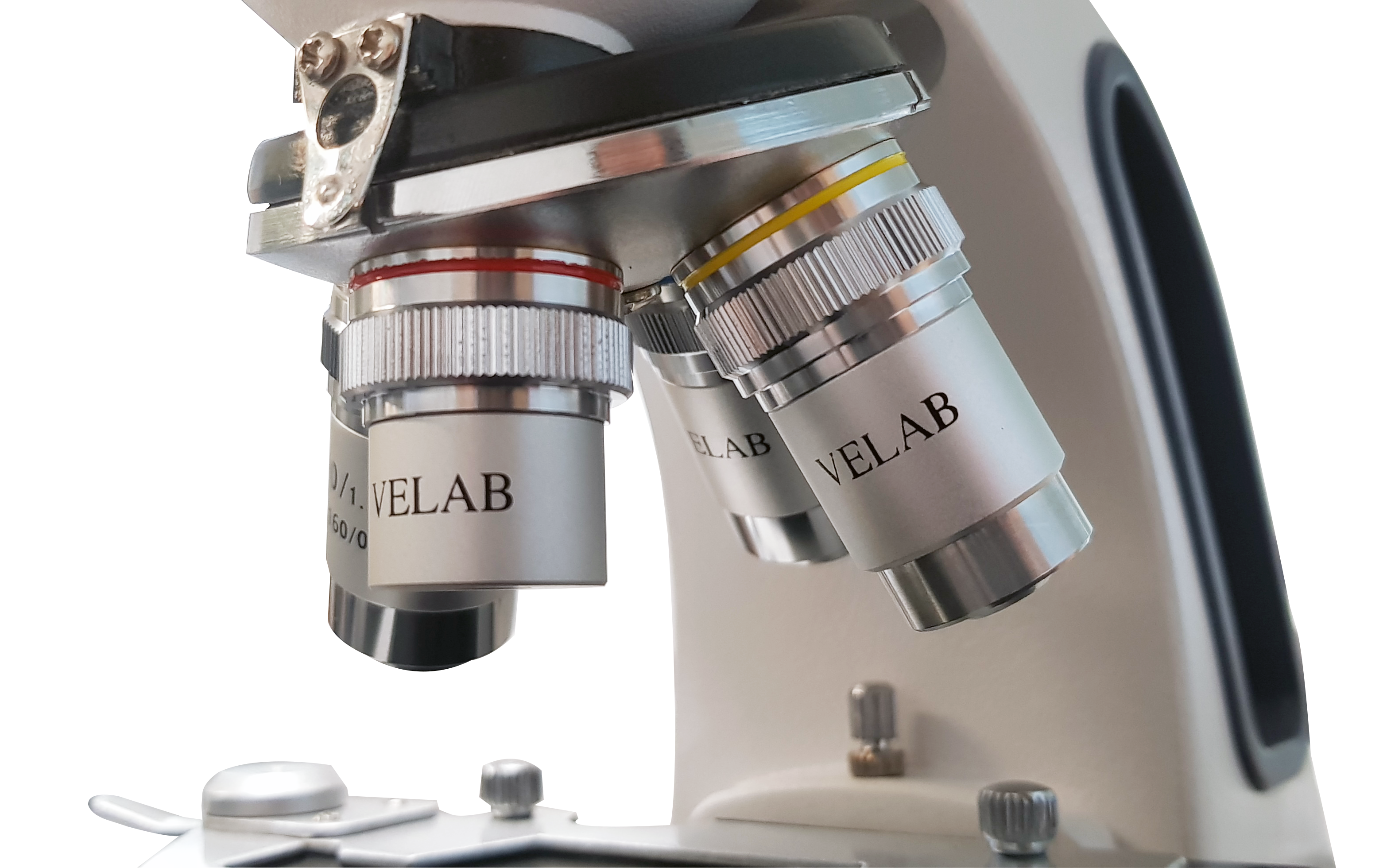

| Objectives: 4X, 10X, 40X, 100X (S) (oil) |
|
Optical system: Achromatic |
|
Stage: Double layer with coaxial movement X-Y 130 x 130 mm / 5.1” x 5.1”. |
| Condenser: Abbe, A.N. 1.25 |
| Diaphragm: Iris type with filter holder. |
| Focus: Coarse and fine anti-slip control knob |
| Ilumination: LED |
| Dimensions: 145 x 350 x 230 mm/5.7" x 13.7" x 9.0" |
| Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter. |
Main features
- 10X Wide Field Monocular Dual Head.
- LED lighting with intensity adjustment.
- Compact, lightweight and easy to transport.
- Stage with clamps, stop with height adjustment, vernier and millimeter scale.
- Colored objective rings for easy identification.
- Non-slip lenses with metallic finish.
- Finished in epoxy paint.
- Focus with tension adjustment.
- Head inclined at 45° and rotatable 360°.
Applications
- Education
ACCESSORIES INCLUDED
- AC/DC Adapter.
- Dust cover
- Immersion oil
- Color filters green, yellow and blue
Warranty
10-years limited warranty
