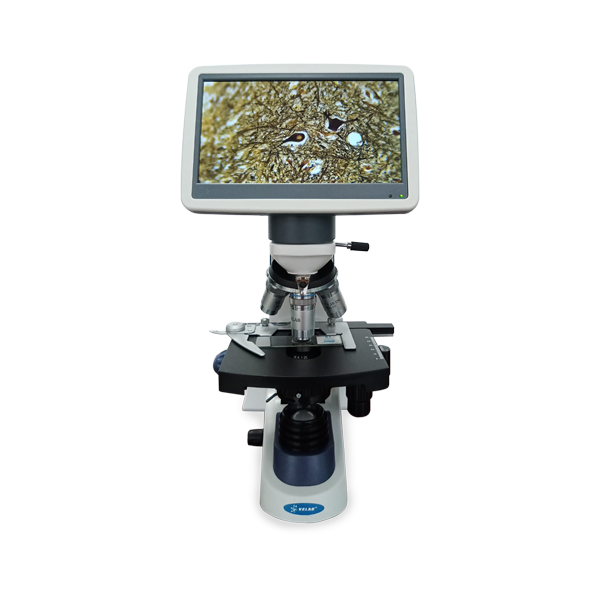

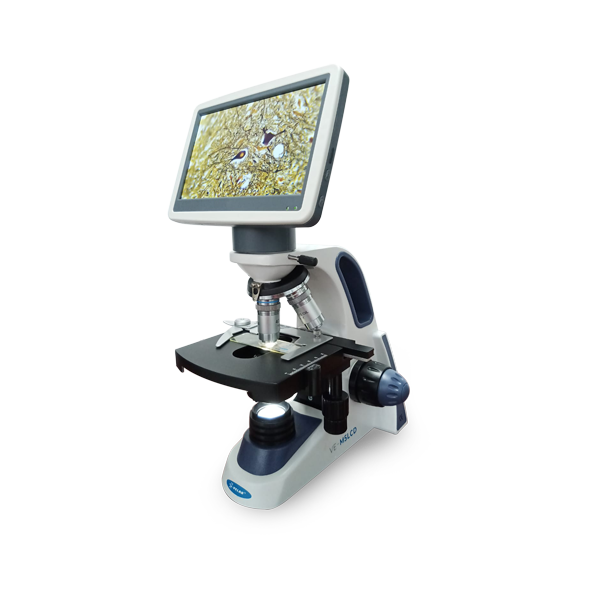

The VE-M5LCD microscope can fulfill all kinds of basic and advanced procedures. Ideal for education, as well as routine work in clinical laboratories.
Equipped with an LCD screen and a 2.0MP camera (included). The VE- M5LCD is an ideal device for teaching, analysis and group observations as well as for basic and intermediate research.
The VE-M5LCD includes easy-to- use software compatible with Windows operating systems to analyze and store images on your computer.
TECHNICAL DATA
| HEAD: | Screen LCD 7” |
| CAMERA | 2.0 mp, Digital Camera (Resolution: 1920 x 1080 pixels) |
| NOSEPIECE: | Quadruple |
| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil) |
| OPTICAL SYSTEM | Achromatic |
| STAGE: | Double layer with coaxial movement X-Y 130 x 130 mm / 5.1” x 5.1” |
| CONDENSER: | Abbe, N.A. 1.25 |
| DIAPHRAGM: | Iris type with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob |
| ILLUMINATION: | LED |
| POWER SUPPLY: | Three 1.2V AA rechargeable batteries (included) 110-240V, 50/60 Hz adapter. |
| DIMENSIONS: | 7.9″ x 15.94″ x 9.88″ |
Main Features
- 4GB MicroSD memory card port
- Objectives with colored ring
- 7 “screen with excellent image definition.
- Lighting with intensity adjustment.
- Stage with vernier, millimeter scale, caliper.
- Image parameter settings such as white balance, brightness, contrast and saturation, among others.
- Tools for calibration, power strip and measurement.
- Adjustment of the field of observation, image rotation, grayscale.
Applications
- Education: Basic grade levels
- Clinical
ACCESSORIES INCLUDED
- AC/DC adapters.
- Color filters green, yellow and blue
- Dust cover.
- Immersion oi.
- 4GB micro SD card memory
WARRANTY
10-years limited warranty.
