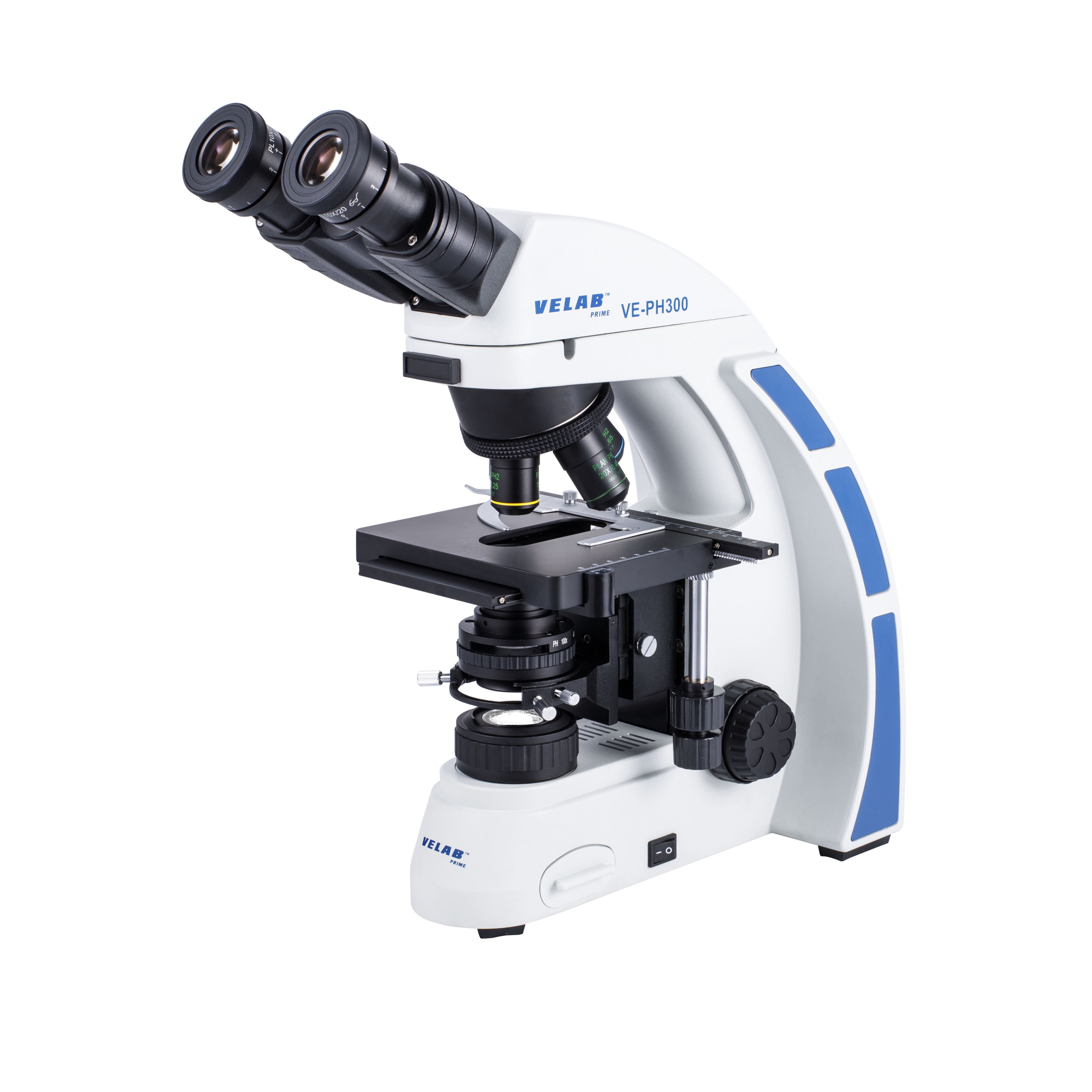

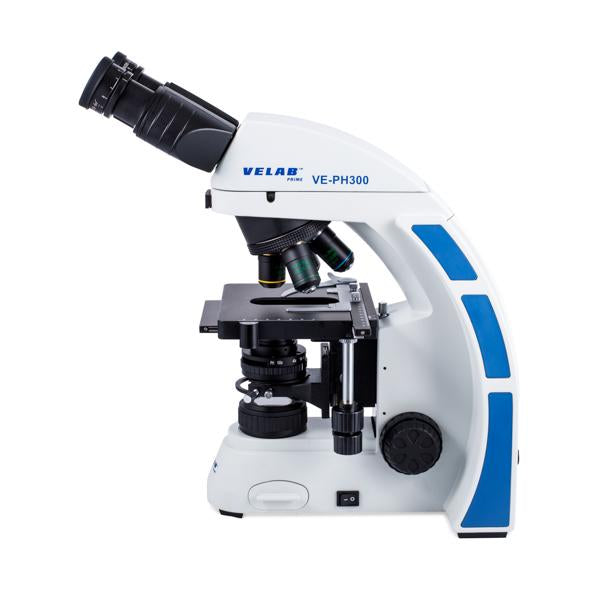

VE-PH300 Phase Contrast Microscope

SKU: VE-PH300

$3,558.00

The VE-PH300 phase contrast microscope was designed for professional use that allows immediate exams. It is used in biological areas for the observation of fresh samples without the need of applying stains that can damage their structure.

Used in the observation of cells and tissue, fresh blood analysis, quantification of microorganisms and parasites in fluids and tissues. Applicable in biological areas such as physiology, pathology, pharmacology and medicine. It has 4 phase rings and an observation position for a clear field. It has excellent optical quality components and highly efficient LED illumination.

TECHNICAL DATA

EYEPIECES: PL 10x/20 mm 3

NOSEPIECE: Quadruple

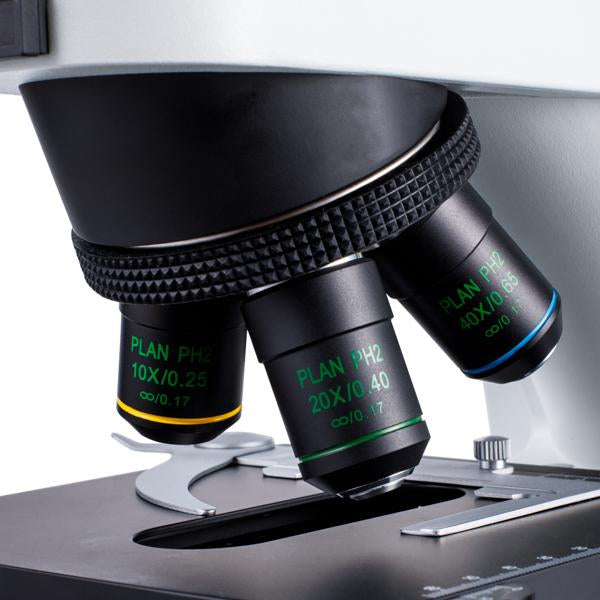

OBJECTIVES: PH10X, PH20X, PH40X, PH100X (oil( (S)

OPTICAL SYSTEM: Infinity corrected plan achromatic

STAGE: Double layer with coaxial movement X-Y, 150-140 mm / 5.9" x 5.5"

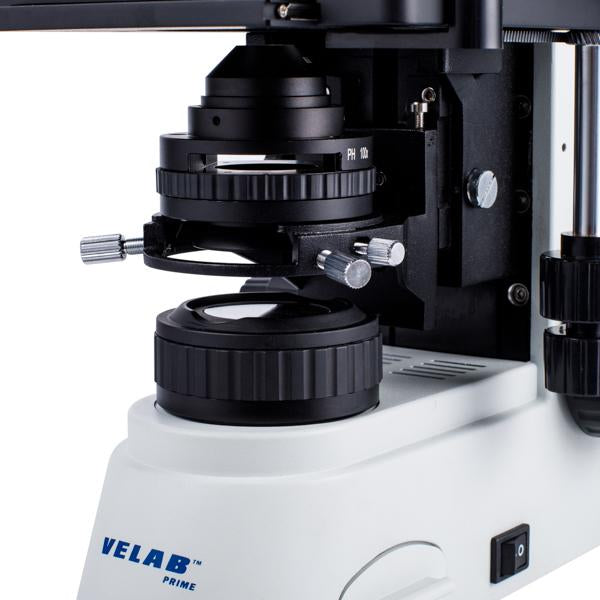

CONDENSER: Abbe, A.N. 1.25 Slot for placing sheets for phase contrast

DIAPHRAGM: Iris type

FOCUS: Coarse and fine anti-slip control knob ( precision 0.001 mm)

ILUMINATION: Kohler LED 3W

POWER SUPPLY: 110/240V, 50/60 Hz AC adapter

DIMENSIONS: 185 x 396 x 290 mm / 7.2" x 15.5" x 11.4"

MAIN FEATURES

Diopter adjustment on both eyepieces.
Gemel type Binocular Head with 360° rotatable eyepiece tube.
Plates with vernier, millimeter scale and calipers.
Objectives with phase rings, for phase contrast, and colored rings, for identification.
Optional accessories for darkfield, polarization and fluorescence.
Phase-contrast by sliders coupled to the condenser.
Interpupillary distance of 50 - 75 mm.
Head inclined at 30 °.
Stative, robust and reinforced. Easy to transport.
Illumination with intensity and diaphragm adjustment field in the lamp.
Optical correction PL, for the best viewing.
Phase-contrast by sliders coupled to the condenser.
