Its Greenough design allows three-dimensional observation of insects and is ideal in the dissection and classification of organisms. The VE-S5 includes easy-to-use operational software compatible with Windows operating systems, perfect for the observation of images in real time and storage in a computer.
Technical data
| Eyepiece: WF 10X/20 mm |
| Camera: 3MP integrated |
| objectives: 0.7X, 0.8X, 1X, 1.5X, 2X, 3X, 4X and 4.5X (7 to 45 total increases) |
|
Optical system: Greenough system, with variable magnification zoom |
| Stage: Interchangeable, translucent white and white/black |

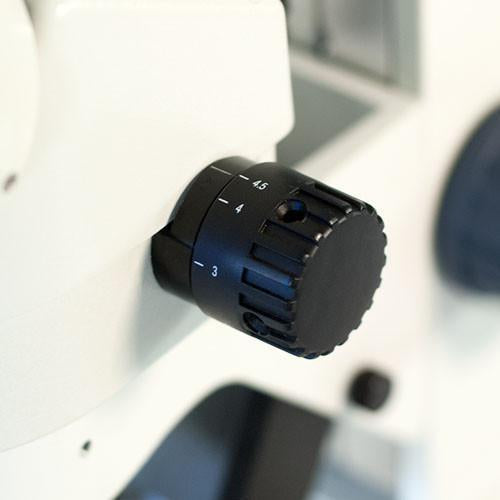

| Focus: Coarse anti-slip control knob |
| Ilumination: Transmitted and incident LED |
|
Operating system: Microsoft Windows 7/ 8 / 10 / 11 |
| Power supply: 110/240V, 50/60 Hz AC adapter. |
| Dimensions: 225 x 355 x 270 mm / 808" x 13.9" x 10.6" |
Main feature
- Diopter adjustment on both eyepieces.
- VelabView software for camera operation via a computer.
- Lighting with independent intensity adjustment.
Functions
Photo capture, burst mode photo, and video recording. Image parameter adjustments, auto exposure, and automatic white balance, as well as RGB color channel adjustments. Real-time video processing, including grayscale, binarization, and negative image. Image counting real-time measurement of lengths, areas, and angles, HDR and EDF.
Applications
- Education: upper grade levels
- Industrial
- Research
ACCESSORIES INCLUDED
- Dust cover.
- Software
- USB cable.
Warranty
10-years limited warranty
