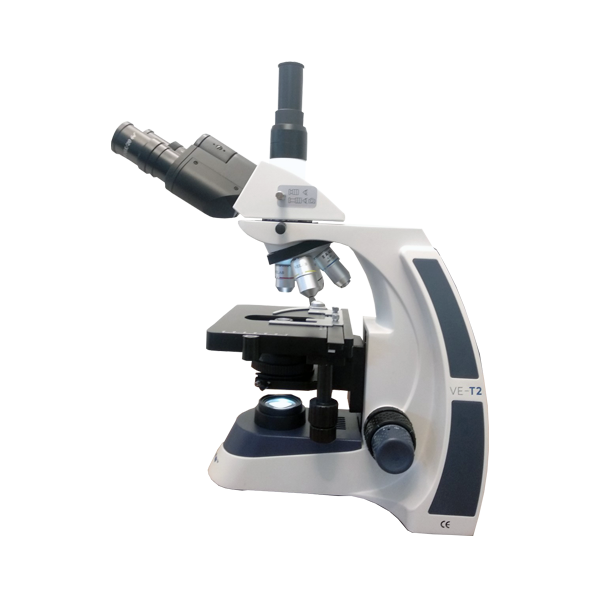

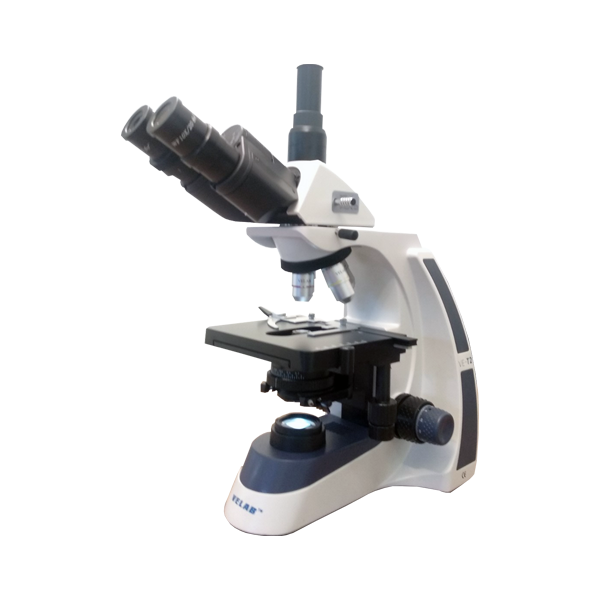

The VE-T2 trinocular microscope is ideal for higher education and routine work in clinical research and laboratories. Its eyepieces provide a wide field of observation and its third eyepiece makes it the ideal device adaptable to multiple image and video documentation devices. Thanks to its rechargeable batteries, the VE-T2 is a portable device that offers 4 hours of continuous use.
TECHNICAL DATA
| Eyepieces: WF 10x/20mm |
| Nosepiece: Quadruple |

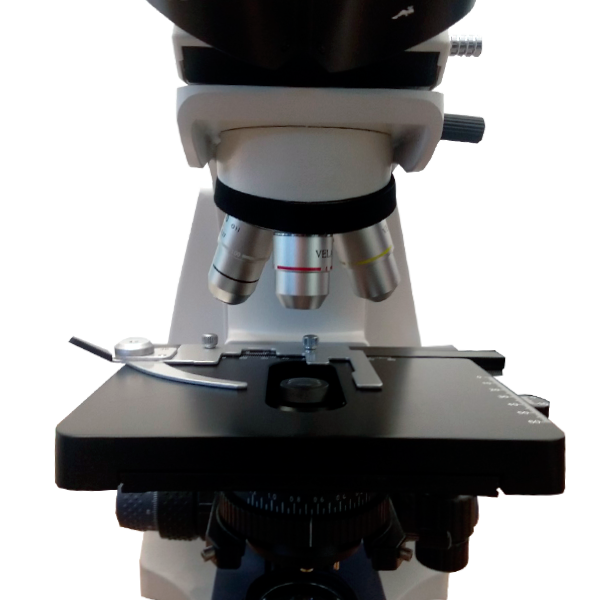

| Objectives: 4X, 10X, 40X (S), 100X (oil) (S) |
| Optical system: Achromatic |
| Stage: Double layer with coaxial movement X-Y 160 x 140 mm / 6.2" x 5.5" |
| Condenser: Abbe, 1.25 de A.N. with elevator |
| Diaphragm: Iris type |
| Focus: Coarse and fine anti-slip control knob |
| Illumination: LED |
| Dimensions: 200 x 430 x 270 mm / 7.8" x 16.9" x 10.6" |
| Power supply: Three 1.2V AA rechargeable batteries (included), 110/240V, 50/60 Hz AC adapter. |
MAIN FEATURES
- Diopter adjustment in one eyepiece.
- Siedentop type Trinocular Head.
- Head inclined at 30 ° and rotatable 360 °.
- Interpupillary distance of 48 ~ 75 mm.
- Objectives with colored rings.
- Stative, robust, reinforced and easy to transport.
- Lighting with intensity adjustment.
- Rechargeable batteries incorporated into the stand.
- Stage with vernier, millimeter scale, caliper and stop with height adjustment.
- 23mm diameter phototube, compatible with VELAB MC, LX series cameras and VE-SCOPEPAD tablet
APPLICATIONS
- Education: Upper grade levels
- Clinical
- Research
ACCESSORIES INCLUDED
- AC/DC adapter
- Blue, green and yellow filters
- Dust cover
- Immersion oil
WARRANTY
1-years limited warranty
