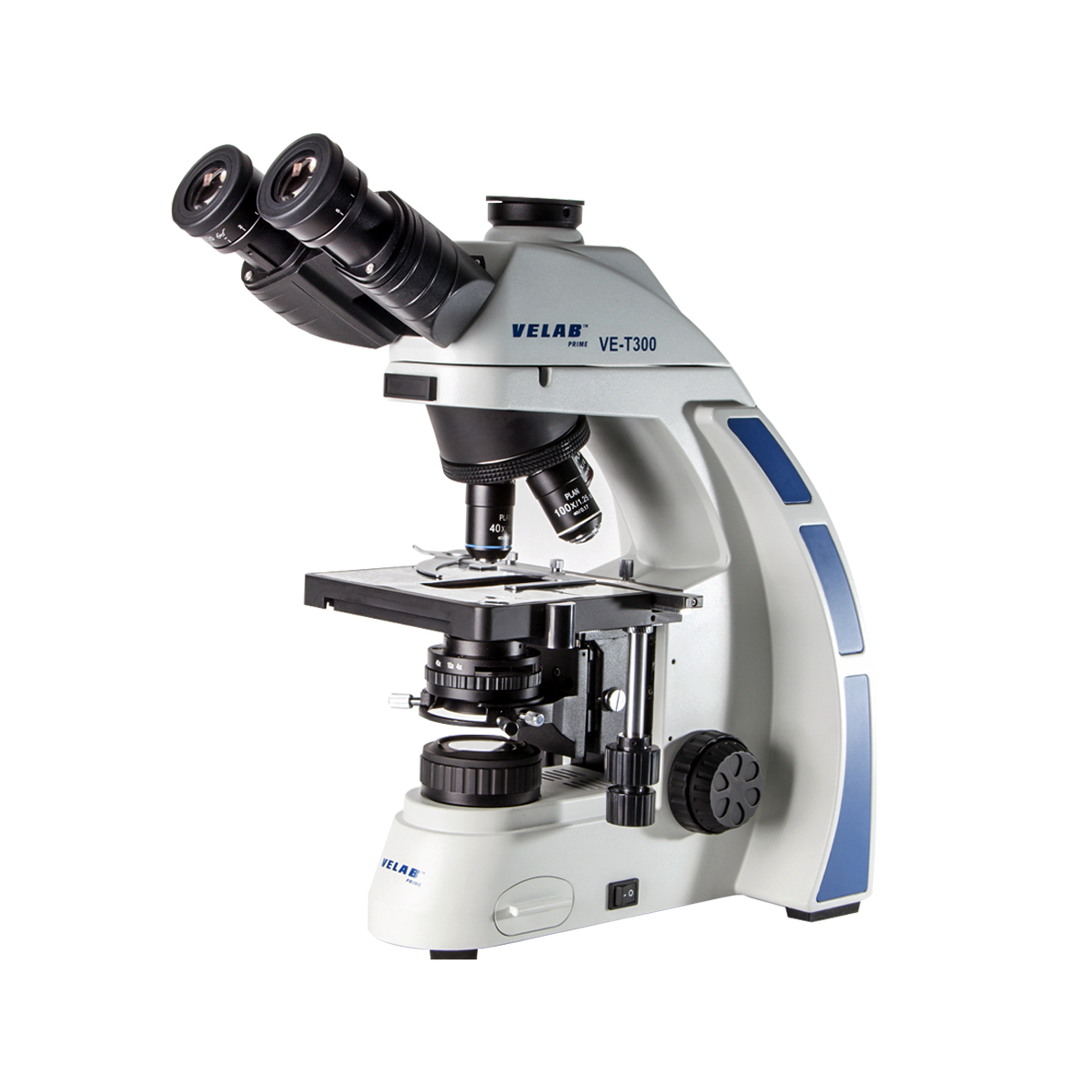

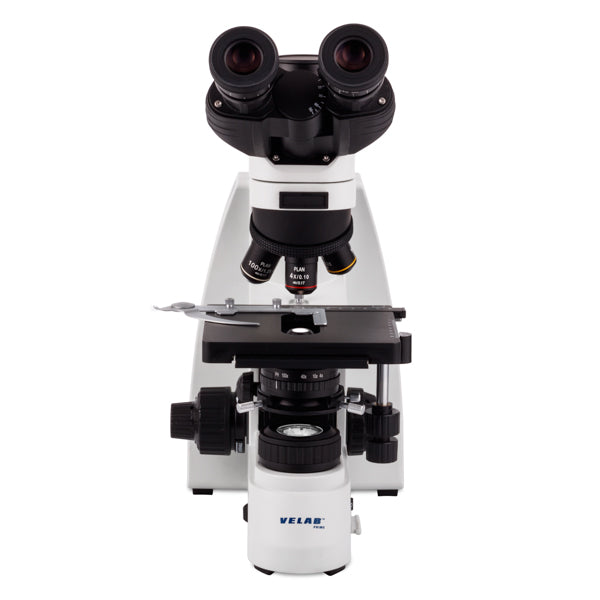

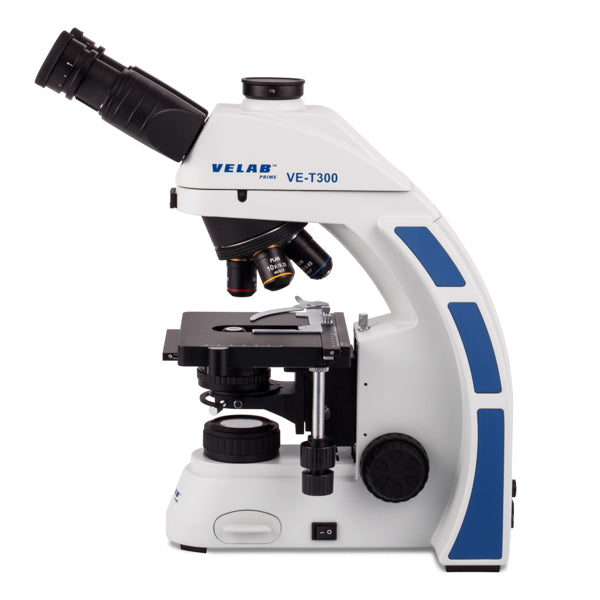

The VE-T300 microscope was designed for professional and is ideal for research, higher education and routine work in clinical laboratories, thanks to its excellent quality optical components and highly efficient LED illumination.
Adaptable to the needs of the user, the VE-T300 offers optional configurations for several applications. Its trinocular head allows the adaptation of digital devices (not included) for image and video documentation.
TECHNICAL DATA
| EYEPIECES: PL 10X/20 mm |
| NOSEPIECE: Quadruple |
| OBJECTIVES: 4X, 10X, 40X (S),100X (S) (oil) |
| OPTICAL SYSTEM: Infinity-corrects plan achromatic |
| STAGE: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9" x 5.5" |

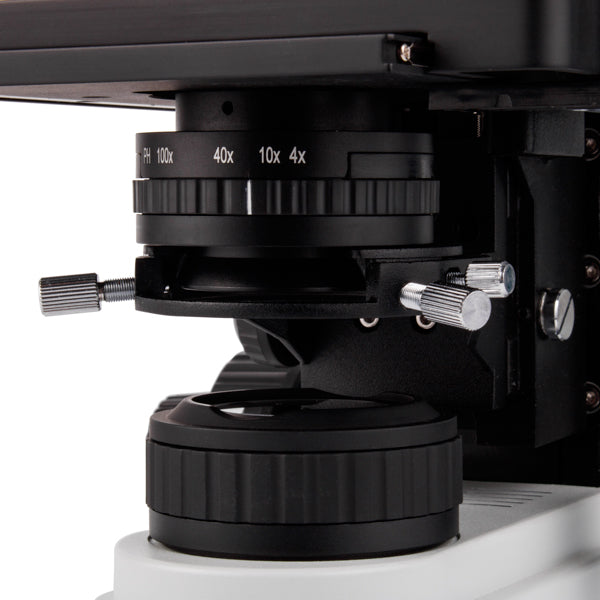

| CONDENSER: Abbe, N.A. 1.25 with slot for additional settings (non included) |
| DIAPHRAGM: Iris type |
| FOCUS: Coarse and fine anti-slip control knob (precision 0.001 mm) |
| ILUMINATION: Kohler LED 3W |
| POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter. |
| DIMENSIONS: 185 x 396 x 290 mm / 7.2" X 15.5" X 11.4" |
MAIN FEATURES
- Diopter adjustment in both eyepieces.

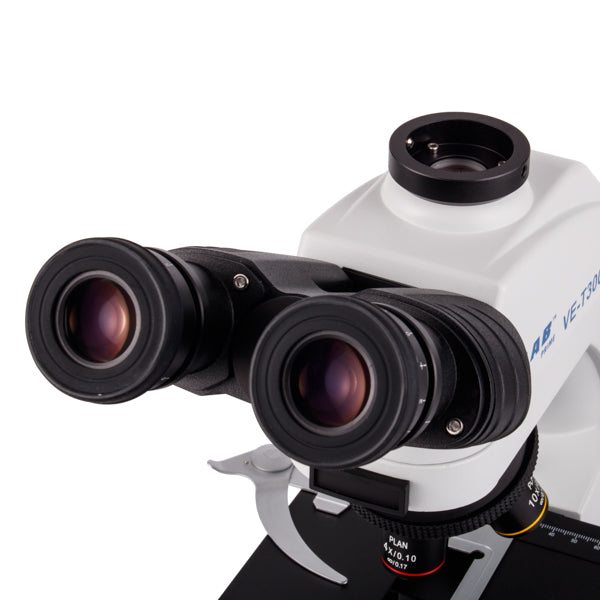

- Heads inclined at 30 ° with 360° rotatable eyepiece tube.
- Plates with vernier, millimeter scale and calipers.
- Lighting with intensity adjustment.
- Optical correction PL, for the best viewing.
- Interpupillary distance of 50 - 75 mm.
- Stative, robust and reinforced. Easy to transport.
- Objectives with colored rings.
- Optional accessories for phase contrast, darkfield, polarization and fluorescence (not included).
- Gemel type trinocular head, with phototube for c-mount adapter, compatible with VELAB LX series cameras and VE-SCOPEPAD300 tablet
APPLICATIONS
- Education: Upper grade levels
- Research
- Clinical
ACCESSORIES INCLUDED
- Dust cover.
- Immersion oil.
- Power cord.
- C-mount adapter
warranty
10-years limited warranty
